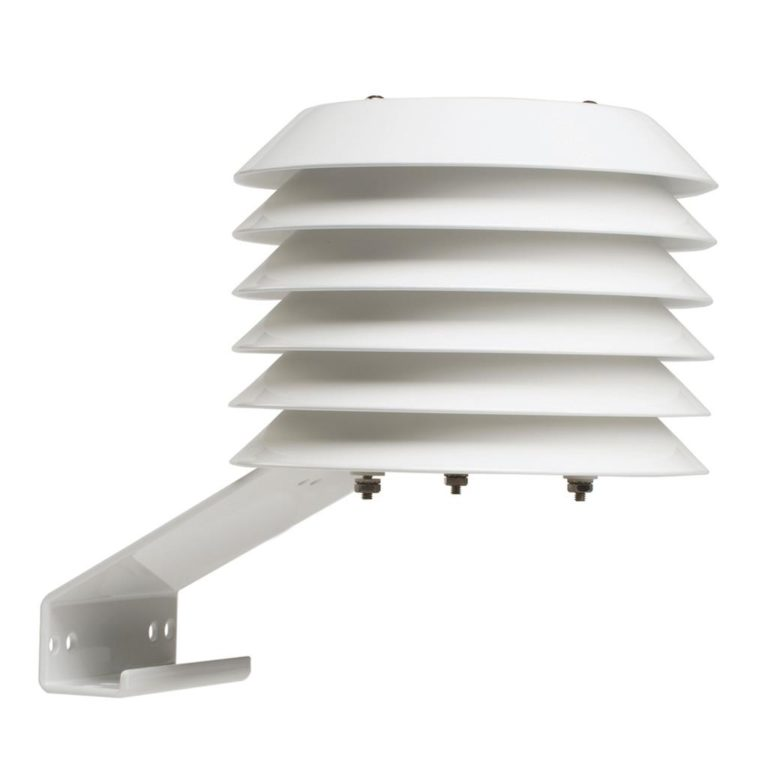

The Model 074 Radiation Shield is designed to greatly reduce errors in temperature and relative humidity due to direct solar radiation.
Sensors: Model 065, 083E-1-35 1 & 085-35
Transducer Sensing Zone: 1in. (2.54cm) maximum
Max. Transducer Diameter: 0.75in. (1.9cm)
Mounting: U-bolt and mounting arm assembly adapts to a variety of pole diameters.
Plate Material: Spun aluminum (7 each)
Finish: Gloss white powder coat
Dimensions (less sensor):
Diameter: 7in. (17.8cm)
Height: 3.5in. (8.9cm)
Weight: 2.0lbs (0.91kg)
