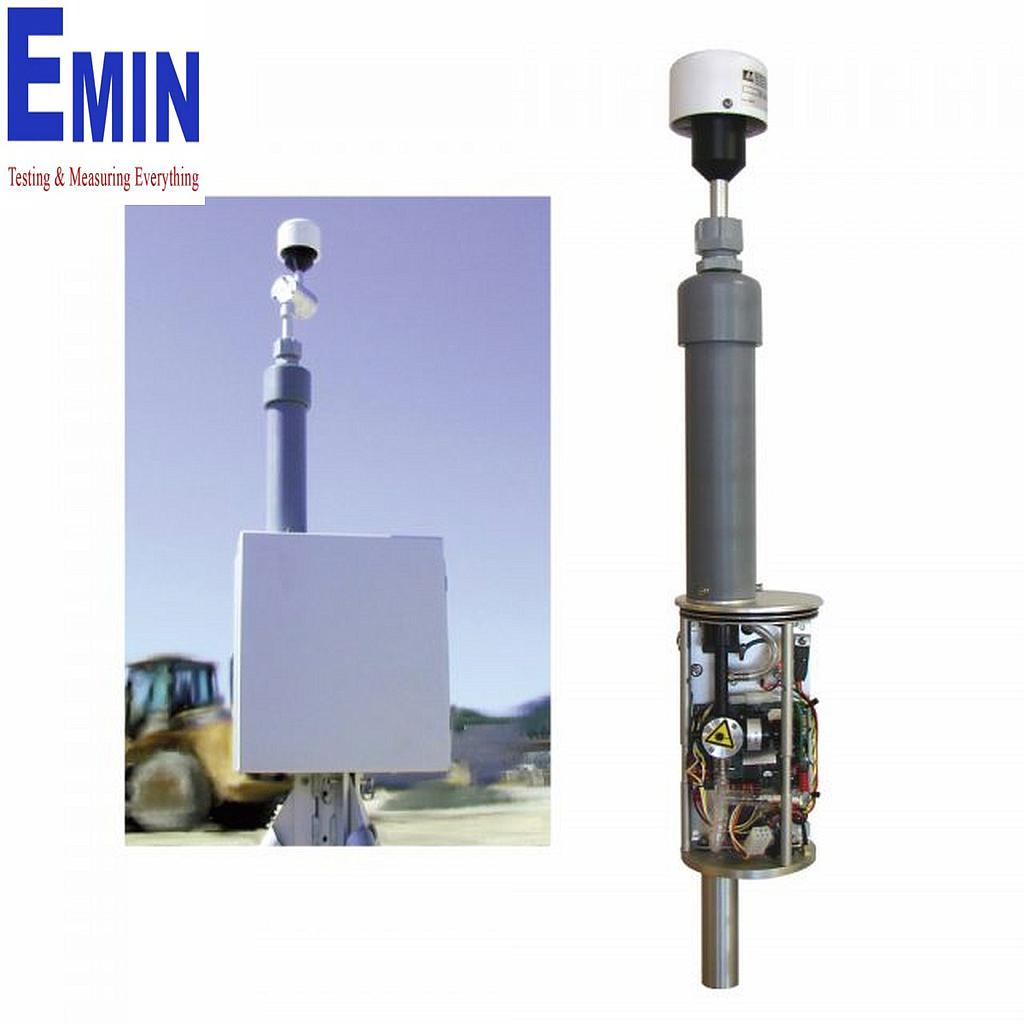

Met One E-SAMPLER气溶胶监测仪

Manufacturer: Met One
Origin: USA
Warranty: 12 months

- Programmable Auto-Zero
- Programmable Auto-Span
- Auto-ranging (1 to 65000 μm/m3)
- Automatic Flow Control Protocol
- Internal Battery (30 Hours Operation without heater & 10 Hours with heater.)
- Laser-Diode Precise Optical Engine
- Integral 47mm Analysis Filter
- Ambient Pressure and Temperature
- Internal Datalogger
- PM10, PM2.5, PM1, TSP Monitoring
- Aluminum Weatherproof Enclosure
- Purge-Air protected Optics
- Completely Self-Contained
- No Tools Filter Replacement


Concentration Ranges
-0.5, 0-1, 0-10 0-65 mg/m3
Laser: 670 nm, 5 mW
Sensitivity: 0.001mg/m3
Sample Period: 1 sec
Sample Flow Rate: 2 LPM
Pump Type: Diaphram 10,000 hr
Accuracy: 8% of NIOSH 0600
Precision: 0.003 mg/m3 or 2% reading
Particle Size Sensitivity Range: 0.1-100 micron
Long term Stability: 5% reading
Sensor Type: Forward Light Scatter
Average Period: 1 – 60 minutes
Display: 4X20 LCD
Internal Battery (Optional): 12 VDC 12 Amp-Hr, lead acid
Power Consumption: 350mA (no heater), 1.1 A (w/heater)
Internal Battery Operation, no heater: >30 Hours
Internal Battery Operation, heater: 10 Hours
Size: 10.5 (267) X 9.25 (235) X 5.7 (145) inches (mm)
MOI Service Period: 2 yrs
Programmable Auto-Zero: 15min to 24 hours
Programmable Auto-Span: 15min to 24 hours
Traceable Testing: Gravimetric
Sample Line Heater: Configurable RH Controlled
Outputs: Analog 0-1,0-2.5, 0-5VDC, RS232
Data Storage Capacity: 12000 Records
Temperature Compensation: Standard
Temperature Range: -30C to +50C
RH Measurement: Internal
Ambient Temperature: -30C to +50C
Ambient Pressure: 1040 to 600 mbars
Alarm: Contact Closure
Available Cut Points:

TSP, PM10, PM2.5, PM1

Standard Equipment
Universal Voltage Power Supply
Battery Charger Internal
47 mm Filter Holder
Comet Software
TSP Inlet
Inlet Heater
Digital Output Cable
Instruction Manual
PM10, PM2.5, PM1 Sharp-Cut Cyclone
Low Temperature Option, -40C to +50C
Aluminum Tripod
MicroMet Software
Radio Modem
Wind Speed/Direction Sensor
Ambient RH
External Battery Cable
