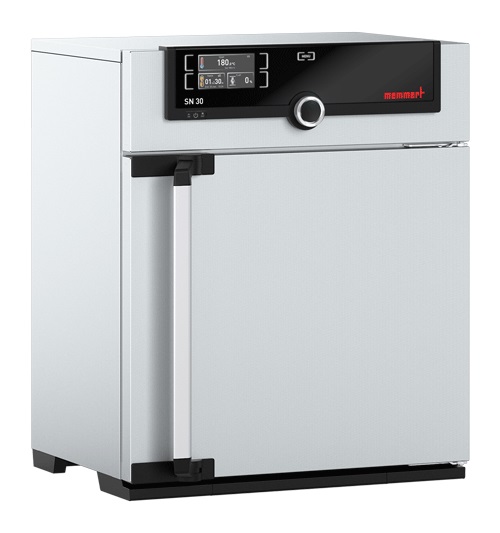

Memmert SN30 消毒器,32l

Temperature: Set temperature range in °C     min. 5°C above ambient up to +250°C

Temperature:     1 Pt100 sensor DIN class A in 4-wire-circuit

Language setting:     German, English, Spanish, French, Polish, Czech, Hungarian

ControlCOCKPIT     SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display

Timer:     Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function SetpointWAIT     the process time does not start until the set temperature is reached

Calibration:     three freely selectable temperature values

adjustable parameters     temperature (Celsius or Fahrenheit), air flap position, programme time, time zones, summertime/wintertime

Convection :    natural convection

Fresh air admixture:     adjustment of pre-heated fresh air admixture by air flap control in 10 % steps

Vent:     vent connection with restrictor flap

Documentation :    programme stored in case of power failure

Programming :    AtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).

Temperature control:     adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature

Autodiagnostic system:     for fault analysis

Standard equipment

Internals:     1 stainless steel grid(s), electropolished

Works calibration certificate:     Calibration at +160°C

Door :    fully insulated stainless steel door with 2-point locking (compression door lock)

Stainless steel interior

Interior:     easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

Volume :    32 l

Dimensions W x H x D in mm:     w(A) x h(B) x d(C): 400 x 320 x 250 mm

Max. number of internals :    3

Max. loading of chamber :    60 kg

Max. loading per internal:     20 kg

Dimensions  :   w(D) x h(E) x d(F): 585 x 704 x 434 mm

Housing :    rear zinc-plated steel

Electrical data

Voltage Electrical load:     230 V, 50/60 Hz

approx. 1600 W

Voltage Electrical load :    115 V, 50/60 Hz

approx. 1600 W

Set Up :    The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.

Altitude of installation:     max. 2,000 m above sea level

Ambient temperature:     +5 °C to +40 °C

Humidity rh :    max. 80 %, non-condensing

Overvoltage category:     II

Pollution degree:     2

Transport information:     The appliances must be transported upright

Customs tariff number:     8419 8998

Country of origin:     Federal Republic of Germany

WEEE-Reg.-No.:     DE 66812464

Dimensions approx incl. carton:     B x H x T: 660 x 890 x 650 mm

Net weight:     approx. 46 kg

Gross weight carton:     approx. 62 kg
