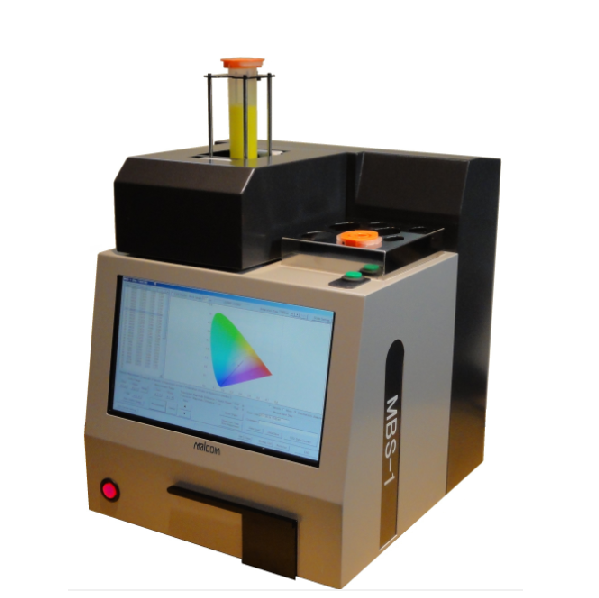

Malcom MBS-1 荧光分光光度计 (380~780nm)

Method: Fluorescenece Intensity Measurement

Detector: 3648 Element Linear Silicon CCD Array

Measurement Wavelength: 380~780nm

Density Measurement: Spectral Radiant Flux (μW/nm, μW/cm2/nm), Irradiance (μW/cm2)Concentration dispersion of encapsulant in a syringe

Integrating sphere Measurements: Luminous Flux (lm), luminous Intensity (cd), CIE Chromaticity Coordinate (x,y,z,u,v,u’,v’), Correlated Color Temperature (K), General Color Rendering Index (Ra), Color Rendering Index (R1~R8), Special Color Rendering Index (R9~R15)

Predictive capabilities: Luminous Flux (lm), luminous Intensity (cd), CIE Chromaticity Coordinate (x,y,z,u,v,u’,v’), Correlated Color Temperature (K), General Color Rendering Index (Ra), Color Rendering Index (R1~R8), Special Color Rendering Index (R9~R15)

Syringe

- Size: 5cc, 10cc, 30cc and 55cc

- Accuracy: Spectral Radiant Flux (μW/nm): ±2%

- Operation stroke: 0mm~120 mm

- Measurement speed: 2mm/s (max. speed)

Interface: USB

Operation Panel: 10.1 inch color LCD (touch panel)

Outer Dimension: 330 (D) x 280 (W) x 350 (H) (mm) (the projection portion is not included)

Power Supply: 100 ~ 240V AC

Weight: Approx. 13 kg
