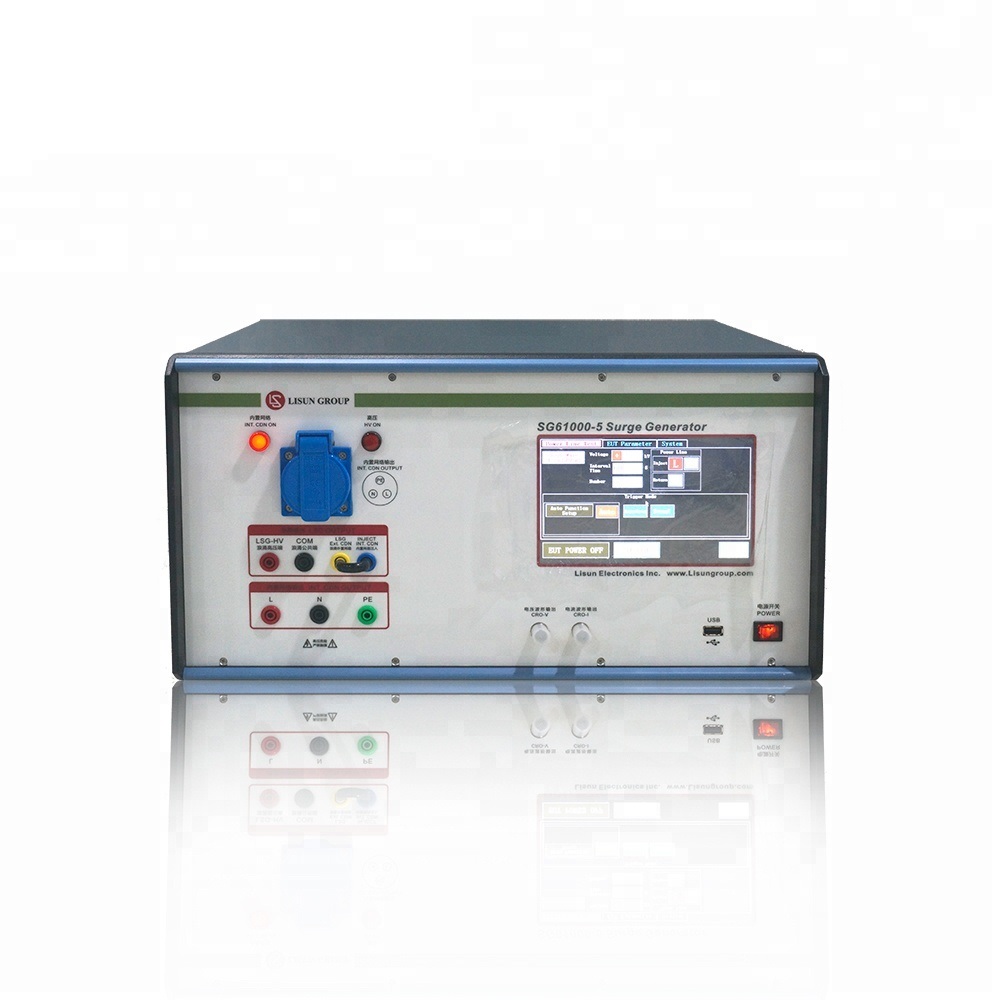

Lisun SG61000-5SB 浪涌发生器(4.8kV,2.4kA)

Output Voltage (Open) 1.2/50μs±20%
Output Current (Short) 8/20μs±20%
Output Impedance 2Ω and 12Ω
Output Voltage Range 0~4.8KV±10%
Output Current Range 0~2.4KA±10%
Surge Repetition 1~9999 times
Interval Time 20~9999s
Polarity Positive, Negative or Positive/Negative automatic
Phase Shift Asynchronous, Synchronization 0°~ 360° or Specific Angle
Coupling/Decoupling Network (CDN) Includes a 16A single phase CDN
Operation Way Touch screen with super big LCD and built-in Windows CE
Dimensions (WxDxH) 44x45x35cm
Gross Weight About 30kg
