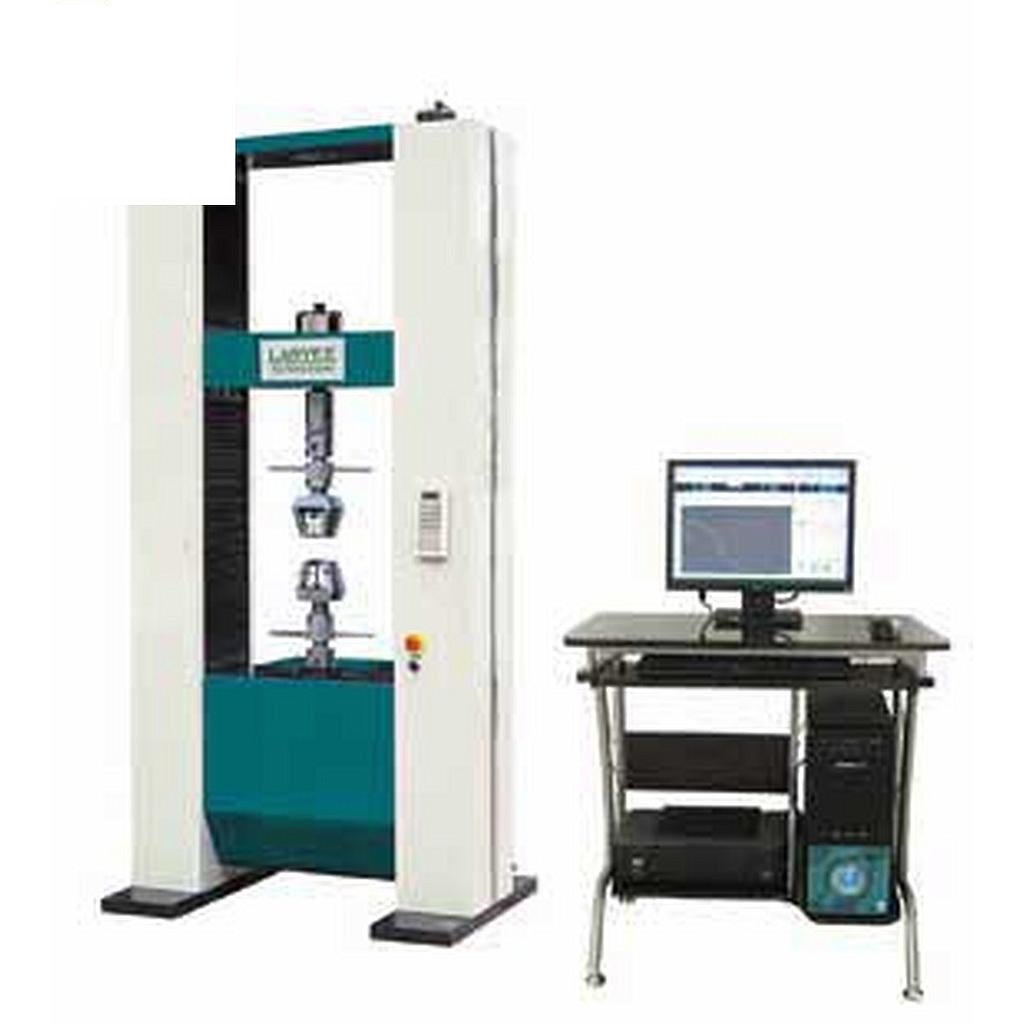

Laryee UE3450 电脑控制电子万能试验机 (50KN; 0.4%--100%F.S; Floor type)

- Maximum force(KN): 50

- Machine type: Floor

- Accuracy: ≤±0.5%

- Measuring range of force (KN): 0.4%--100%F.S

- Resolution of force: 1/300000 of maximum force

- Accuracy of displacement measuring: ±0.5%

- Resolution of displacement: 0.1 μm

- Accuracy of deformation measuring: ±0.5%

- Speed range of displacement control: 0.01-500mm/min (Max 1000mm/min as special order)

- Speed range of force control: 0.005-5% F.S / S

- Speed range of deformation control: 0.005-5% F.S/S

- Range of constant displacement, force and deformation: 0.5%-100% F.S

- Speed controlling accuracy: ≦±1.0% of the set value

- Valid tension testing space(mm): 650

- Compression testing space(mm): 900

- Valid width between columns(mm): 600

- Tension Sample

+ Clamping (mm): Flat grips: 0~14

+ Round grips: Ø4~22

- Power supply: 3P-380kW/220V, 4-7.5kW, 50/60Hz

- Working environment: Room temperature: 10℃~40℃, relative humidity: ≤90%

- Over Dimension without PC table (mm): 1050×800×2250

- Weight(Kg): 1500kg

Standard accessories:

Wedge Tension

Compression Plate

3-Points bending accessories

Encoder installed

Load cell installed

Servo motor and controller built in

Extensometer

DSP PCI Control card

Installation tools

PC and Printer

Optional accessories:

Wedge Tension 1

Wedge Tension 2

Pneumatic Tension

Flat Tension

Film Tension

Opposite Peeling

Thread Tension 1

Thread Tension 2

Bolt Tension

Nail Withdraw

3-Points Bend

Shear

4-Points Bend

Compression Plate

Wood Shear

Wood Bending
