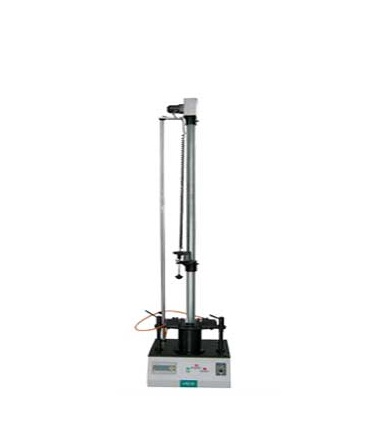

Laryee FIT1130 安全帽冲击试验机

Dart head weight: method A:50g-660g 660g-2000g
Dart head weight: method B:300g-1400g 1400g-2000g
Incremental weight: method A:min5g;methodB:min 15g
Radius of dark head: method A:R19±0.5mm;methodB:R25±0.5mm
Impacting height: method A:660±10mm;method B:1500±10mm
Specimen clamp: inside diameter Φ125±2mm;outside diameter 150±3mm
The thickness of specimen: less than 1.0mm
Maximum impact energy: 30j
Maximum impact height: 1500mm
The type of prevent second impact: pneumatic power:pneumatic power less than 0.6Mpa
Controller: PLC
Indicate: LCD text
Power supply: AC220V,50Hz
Working environment: 10-35℃
Dimension: 500×470×2230
