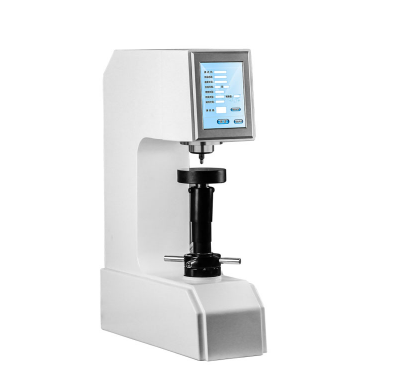

LABTT THR-150/45DX 带触摸屏的洛氏硬度计

Rockwell initial test force: 10KGF (98.07N)

Superficial Rockwell initial test force: 3.0kgf(29.4N)

Rockwell total test force: 60kgf(588N)   100kgf(980N)    150kgf(1471N)

Superficial Rockwell total test force: 15kgf(147.1N)   30kgf(249.2N)    45kgf(441.3N)

Rockwell hardness scale: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV

Superficial Rockwell hardness scale: 15N、15TW、15W、15X、15Y、30N、30TW、30W、30X、30Y、45N、45TW、45W、45X、45Y

Rockwell measurement range: HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120  HRM:85-115、 HRR:114-125

Rockwell test range: HR15N:70-94  HR30N:42-86 HR45N:20-77 HR15TW:67-93  HR30TW:29-82  HR45TW:10-72

Meet standard: BSEN 6508, ISO 6508, ASTM E18, GB/T230

Dwell time: 0-99s

Hardness resolution: 0.1 HR

Error of test force: < 1%

Data output: LCD display

Data is stored: The measured values are saved on USB flash drive in Excel format

Conversion scale: Rockwell, Brinell and Vickers

Maximum allowable specimen height: 200mm

Distance from indenter to wall: 200mm

Size: 560 * 220 * 800 mm

Weight: 70kg

Power supply: AC220 + 5%, 50 ~ 60 hz
