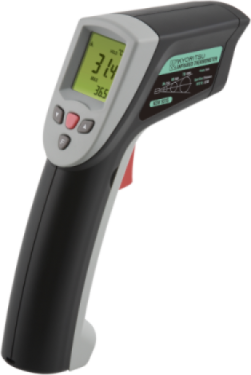

KYORITSU 5515 红外测温仪 (-32 - 535ºC, ± 3.0ºC)

Infrared Thermometer

Measuring range: -32 - 535ºC

Accuracy:: ±3.0ºC (-32 - -20 ºC), ±2.0ºC (-20 - +100ºC), ±2%rdg (100 - 535ºC)

Measuring element: Thermopile

Infrared spectral band: 5 - 14μm

Measuring diameter: 1000mm/ ø78mm (Distance/ Measuring dia.: 12:1)

Repeatability: Within ±1ºC

Emissivity: Variable between 0.10 and 1.00 (by 0.01 steps), Before shipment: 0.95

Collimation: Laser beam (Class 2, 630 - 670nm, 1mW or less) specifies the center.


Thermocouple

Thermocouple: K-type*

Measuring range of thermocouple: -199 - 1372ºC

Accuracy of  thermocouple: ±1.5%rdg+1ºC (-40 - 1372ºC)


Response: 500ms

Resolution: 0.1ºC

Auto power off: If no key is pressed for 6 seconds, the power is shut off automatically.

LCD display LCD with back light (blinks in red when alarm function is activated)

Dual display: Simultaneous display (Measured value and either of max, min, average or thermocouple value.)

Operating temperature & humidity: 0 - 50ºC/ 10 - 90% RH

Applicable standards: IEC 61326, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8, IEC60825-1

Battery: 6F22(9V) × 1

Dimension: 180 (L)×130 (W)×40 (D) mm

Weight: Approx. 195g (excluding battery)

Accessories: 9152(Carrying case), 6F22(9V) × 1
