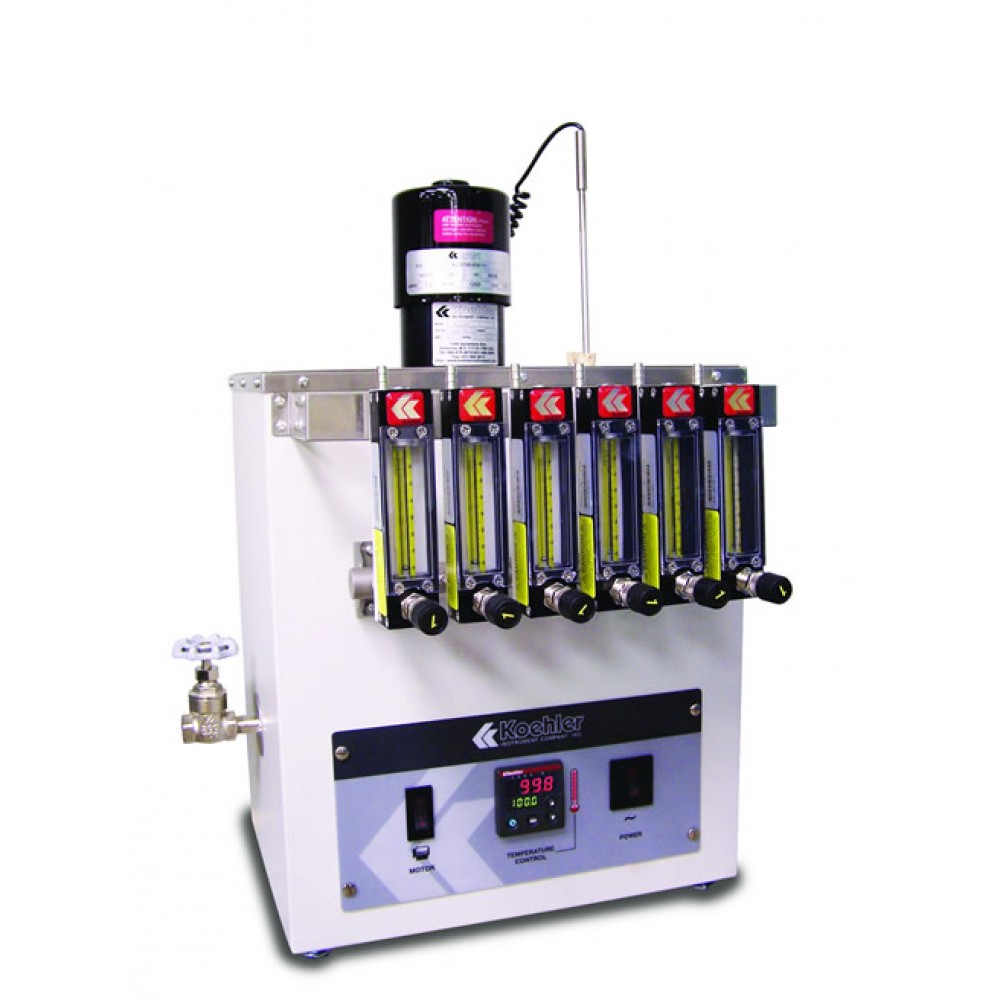

Koehler K64190 矿物绝缘油氧化稳定浴 (6 samples)

Determines oxidation stability of mineral transformer oils by measuring the amount of sludge and acid formed under prescribed accelerated aging conditions.

Specifications

- Conforms to the specifications of: ASTM D2440

- Capacity: Six samples

- Temperature range: ambient to 260°F (127°C)

- Circulator: 1⁄20hp impeller

- Bath capacity/Medium: 7.2 gal (27.2L) white technical oil

Electrical requirements: 220-240V 50/60Hz, Single Phase, 5A

Dimensions

- lxwxh,in.(cm): 22x21.3x21.5 (559x541x546)

Shipping information

- Shipping weight: 49 lbs (265.8kg)

- Dimensions: 24x20x43 in. (61.0x50.8x109.3cm)

Included accessories

- Oil Receptacle and Head (6)

Additional accessories

- K12130 Copper Catalyst Coils - Sealed in a glass jar with a nitrogen atmosphere. Pack of 24 (12 sets)

- 332-005-010 Drying Tower  250mL with ground glass stopper and side tubes

- 332-005-011 Glass Filter Crucible

- 250-000-95C ASTM 95C Thermometer - Range: 100 to 130°C

- 355-001-001 White Technical Oil  1 gal container.

- 355-001-003 White Technical Oil 5 gal container.
