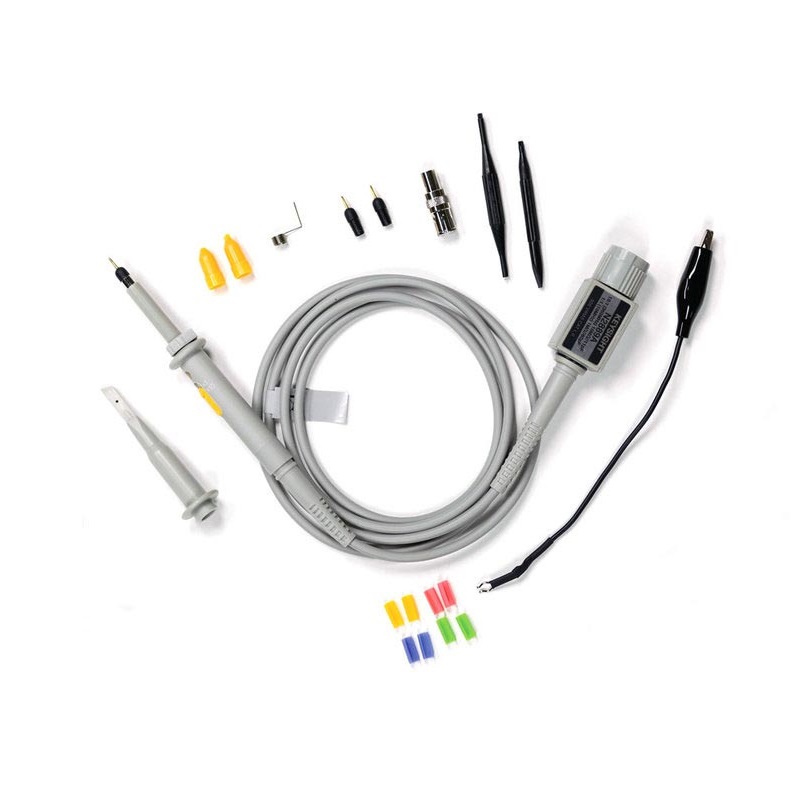

KEYSIGHT N2889A 被动探头 (10MHz, 1:1, 1MΩ / 350MHz, 10:1, 10MΩ)

Bandwidth (-3 dB): 350 MHz (at 10:1),  10 MHz (at 1:1)

Attenuation ratio: 1:1/10:1 (switchable)

Input R (with 1 MΩ input): 10 MΩ (at 10:1), 1 MΩ (at 1:1)

Input C: 11 pF (at 10:1), 60 pF (at 1:1)

Compensation range: 5-30 pF (at 10:1)

Maximum input Volt.: 300 VRMS (or < 400 Vpk) mains isolated/II (at 10:1), 150 V RMS CAT I/II (at 1:1)

Probe ID: No

Cable Length: 1.3 m.


Details

Datasheet
