| 制造商: | KEYSIGHT |

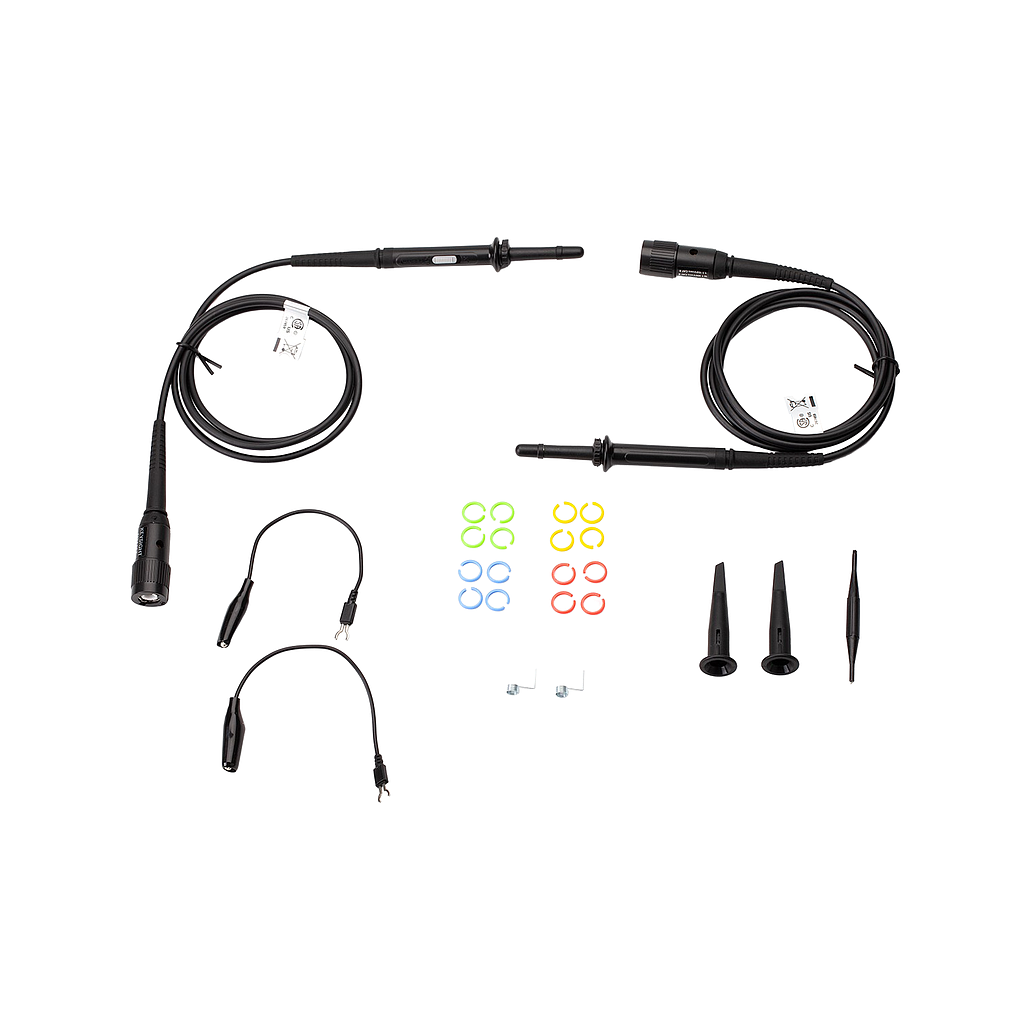

| Model: | N2140A |
Attenuation Ratio: 1:1 / 10:1
Input Capacitance: 1:1 - 100pf / 10:1 - 15pf
Compensation range (when terminated into 1 Mohm): 15pf - 30pf
Input Resistance: 1:1 - 1MΩ / 10:1 - 10MΩ
Maximum Input Voltage:
1:1 - 150V rms CAT II
10:1 - 300V rms CAT II
Bandwidth: 1:1 - 6 MHz / 10:1 - 200 MHz
Temperature
-10 °C to +55 °C (Operating)
-40 °C to +70 °C (Non-operating)
