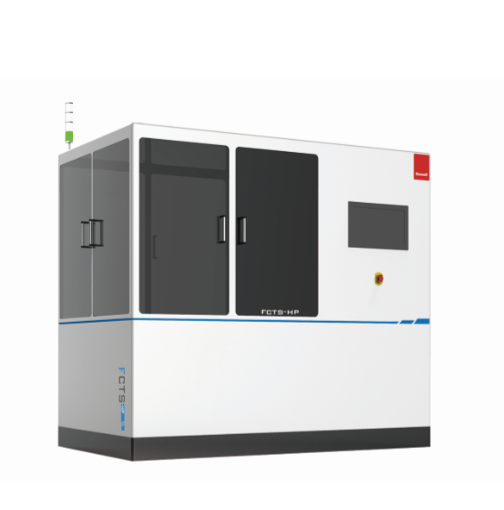

Kewell FCTS-HP-2 Fuel Cell Hydrogen Circulation Pump Test System (50-2500NLPM)

Measurement:

Flow detection range: 50-2500NLPM

Flow measurement precision: ±1%FS

Temperature measurement precision: ±0.5℃

Pressure measurement precision: ±0.5%FS

Pressure control range: 0-300kPa (G)

High-voltage Power Supply:

Rated power: 3200W

Type: High precision DC power supply

Voltage range: 24-800Vdc

Voltage precision: 0.1%+0.1%FS

Voltage ripple (P-P): 500mv

Low-voltage Power Supply:

Voltage: 12V; 24V

Rated power: 450W; 1000W

Rated current: 37.5A; 42A

Voltage precision: ±1%FS

Voltage ripple (P-P): 150mv; 200mv

General Specifications:

Control system: NI

Human-computer interface: Upper computer

External communication: CAN

Internal communication: LAN

Power Supply: AC380V, three-phase five-wire

Ambient temperature: 0~40℃
