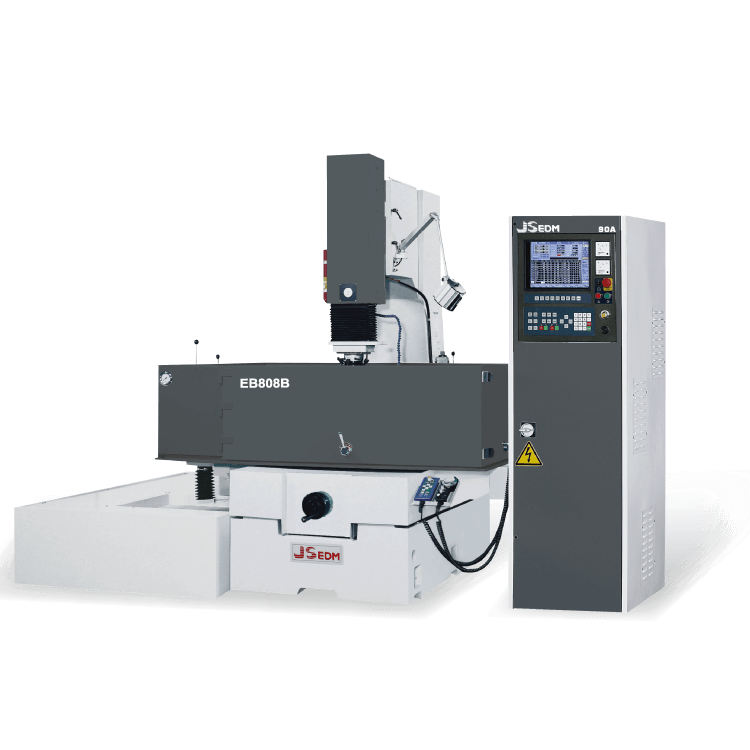

JSEDM EB808B ZNC Electric Discharge Machine (400; 600 mm3/min)

Capacity of work tank: 1700x1000x550mm

Work table size: 1100x600mm

Longitudinal travel(X-axis): 700mm

Cross travel(Y-axis): 550mm

Z axis travel(Z-axis+W-axis): 250+300mm

Distance between platen to table: 250~830mm

Max. Electrode weight: 250kgs

Max. Work piece weight: 2000kgs

Fluid tank capacity: 1250L

Machine outside dimensions(WxDxH): 3300x2000x2300mm

Machine weight: 3100kgs

Max. Machining current: 60A; 90A(Optional)

Max. Power input: 7KVA; 10KVA

Max. Machining rate: 400; 600 mm3/min

Min. Electrode wear ratio: 0.15%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.005mm
