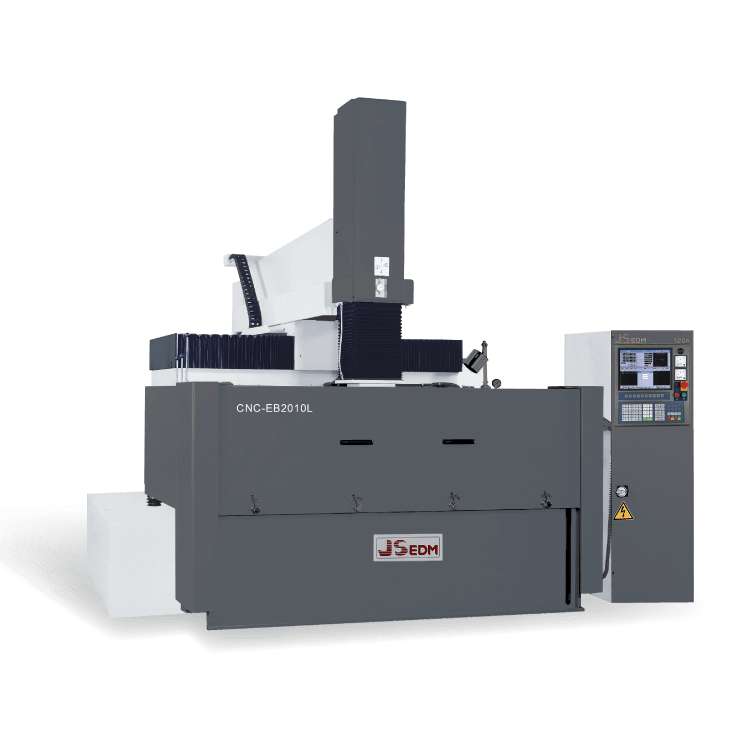

JSEDM CNC-EB2010L Electric Discharge Machine (600; 800 mm3/min)

Capacity of work tank: 2700x1700x800mm

Work table size: 2250x1100mm

Longitudinal travel(X-axis): 2000mm

Cross travel(Y-axis): 1000mm

Z axis travel(Z-axis): 600mm

Distance between platen to table: 660~1260mm

Max. Electrode weight: 500kgs

Max. Work piece weight: 9500kgs

Fluid tank capacity: 3800L

Machine outside dimensions(WxDxH): 5200x4500x3570mm

Machine weight: 12500kgs

Max. Machining current: 90A; 120A(Optional)

Max. Power input: 10KVA; 13KVA

Max. Machining rate: 600; 800 mm3/min

Min. Electrode wear ratio: 0.12%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.001mm

Generator weight: 350 kgs
