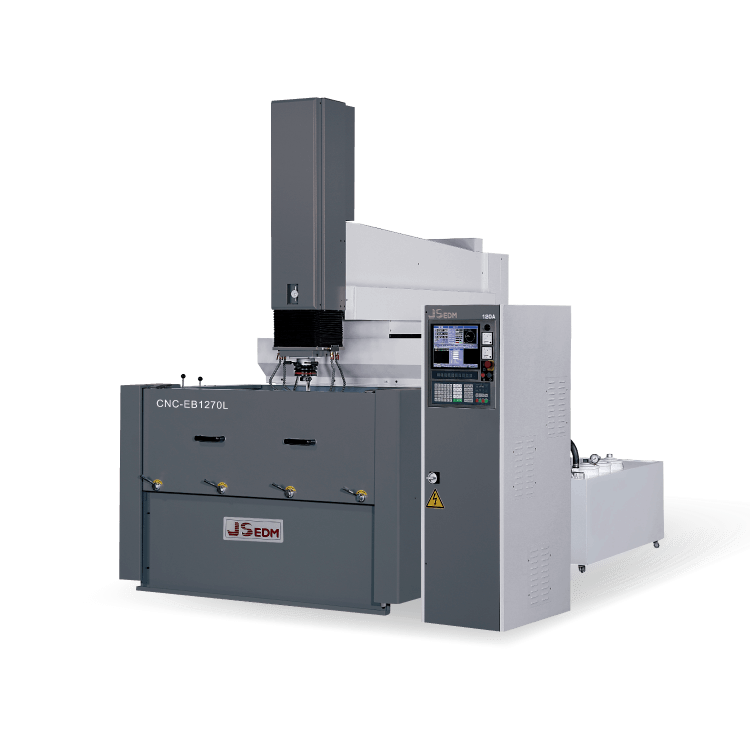

JSEDM CNC-EB1270L 电火花加工机床 (600; 800 mm3/min)
制造商: JSEDM Model: CNC-EB1270L 保障: 12 Month - 报价要求
- 报价要求
- 联系
Capacity of work tank: 2100x1250x620mm
Work table size: 1350x820mm
Longitudinal travel(X-axis): 1200mm
Cross travel(Y-axis): 700mm
Z axis travel(Z-axis): 500mm
Distance between platen to table: 510~1010mm
Max. Electrode weight: 400kgs
Max. Work piece weight: 5000kgs
Fluid tank capacity: 1900L
Machine outside dimensions(WxDxH): 4000x3400x3250mm
Machine weight: 6500kgs
Max. Machining current: 90A; 120A(Optional)
Max. Power input: 10KVA; 13KVA
Max. Machining rate: 600; 800 mm3/min
Min. Electrode wear ratio: 0.12%
Best surface / Ra: Ra 0.2μm
Min. D. R. O. resolution(mm): 0.001mm
Generator weight: 350 kgs
