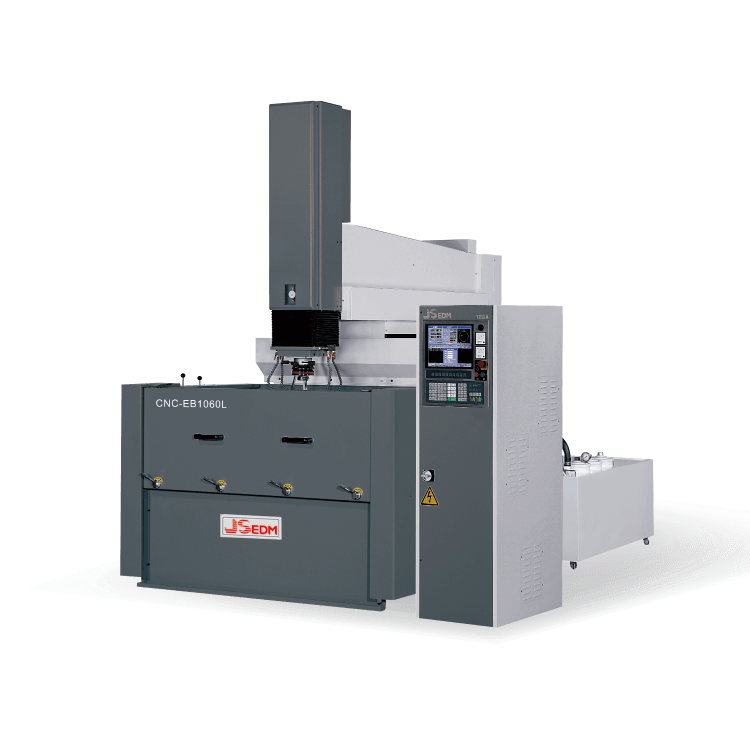

JSEDM CNC-EB1060L 电火花加工机床 (600; 800 mm3/min)

Capacity of work tank: 1900x1100x620mm

Work table size: 1250x750mm

Longitudinal travel(X-axis): 1000mm

Cross travel(Y-axis): 600mm

Z axis travel(Z-axis): 500mm

Distance between platen to table: 450~950mm

Max. Electrode weight: 350kgs

Max. Work piece weight: 4500kgs

Fluid tank capacity: 1600L

Machine outside dimensions(WxDxH): 3600x3250x3200mm

Machine weight: 5200kgs

Max. Machining current: 90A; 120A(Optional)

Max. Power input: 10KVA; 13KVA

Max. Machining rate: 600; 800 mm3/min

Min. Electrode wear ratio: 0.12%

Best surface / Ra: Ra 0.2μm

Min. D. R. O. resolution(mm): 0.001mm

Generator weight: 350 kgs
