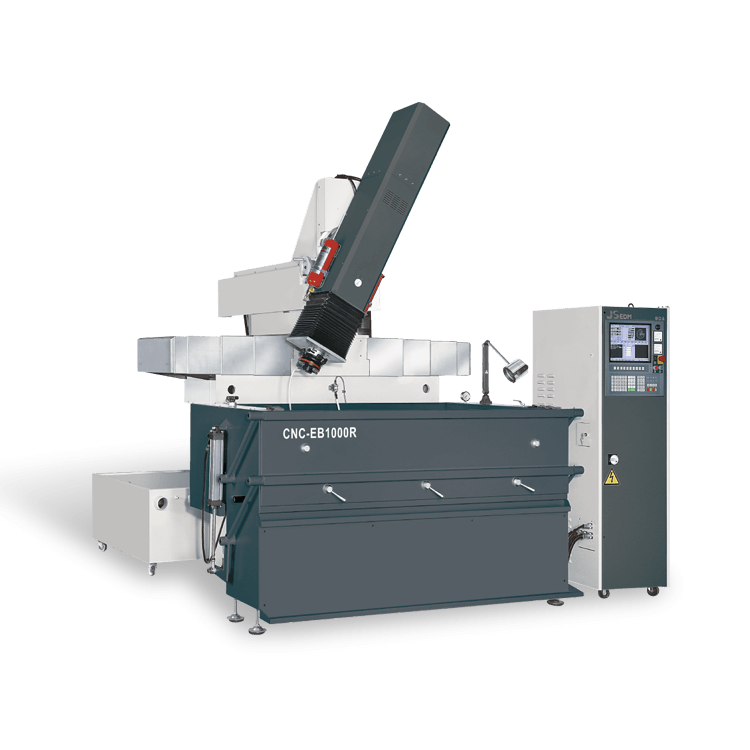

JSEDM CNC-EB1000R 电火花加工机床 (600; 800 mm3/min)
制造商: JSEDM Model: CNC-EB1000R 保障: 12 Month - 报价要求
- 报价要求
- 联系
Capacity of work tank: 1960x1100x550mm
Work table size: 1100x700mm
Longitudinal travel(X-axis): 1000mm
Cross travel(Y-axis): 600mm
Z axis travel(Z-axis): 500mm
Distance between platen to table: 500~1000mm
Max. Electrode weight: 100kgs/3kgs (Slope machining process)
Max. Work piece weight: 4000kgs
Fluid tank capacity: 1560L
Machine outside dimensions(WxDxH): 3600x3200x3200mm
Machine weight: 5000kgs
Max. Machining current: 90A; 120A(Optional)
Max. Power input: 10KVA; 13KVA
Max. Machining rate: 600; 800 mm3/min
Min. Electrode wear ratio: 0.12%
Best surface / Ra: Ra 0.2μm
Min. D. R. O. resolution(mm): 0.001mm
Generator weight: 350 kgs
