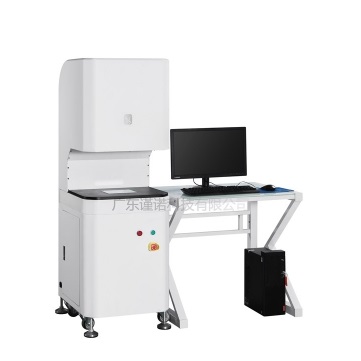

Jinuosh T200H One-key Measuring Machine (floor-standing) (170x113mm)

Field of vision: 170mm×113mm

Measurement accuracy: ±5µm

Repeatability: ±2µm

Instrument dimensions: 600×500×1600mm

Instrument weight: 180KG

Platform load bearing: 10KG

Image Sensor: 20 million pixel CCD

Lens: bilateral telecentric lens

Maximum workpiece height: 100mm

Lens working distance: 280mm

Lens depth of field: 30mm

Light source system: Parallel backlight

Software: JN-AOS. 2. 0

Computer setup: CPU 13 processor 4G memory

Monitor: 21.5-inch LCD monitor

Signal output: Judging the output PASS FAIL NULL

Working environment: 25°C±2℃ 20% to 80%RH

Measuring speed: ≤3 seconds (within 100 dimensions)

Voltage: AC100-240V 50/60Hz
