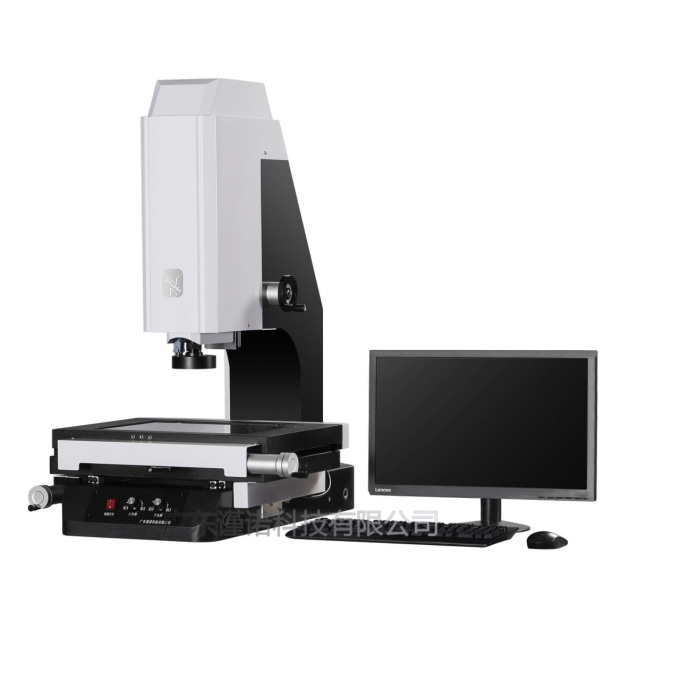

Jinuosh M2010 二维图像测量仪 (200*100*200mm)

Marble table size (mm): 350*220

Glass table size (mm): 230*130

Movement stroke (mm): X:200mm  Y:100mm

Focusing stroke (mm) (Z axis): 200mm

Measurement and aiming system:

High resolution camera (CCD)

Continuous zoom objective magnification: 0.7-4.5X

Working distance: 90mm

Video magnification: 20-230X

Display resolution: 0.0005mm

Precision Image 2D Measurement Software

Indication error: X.Y ≤ (3 + L/200) um (L is the measured length unit: mm)

Lighting system: The ring surface light source and the transmission light source are LEDs, and the brightness is adjustable.

Dimensions (mm) (length × width × height): 500*700*1000

Instrument weight (kg): 170kg

Glass table bearing: 20kg

Instrument power: 220V(AC) 50HZ
