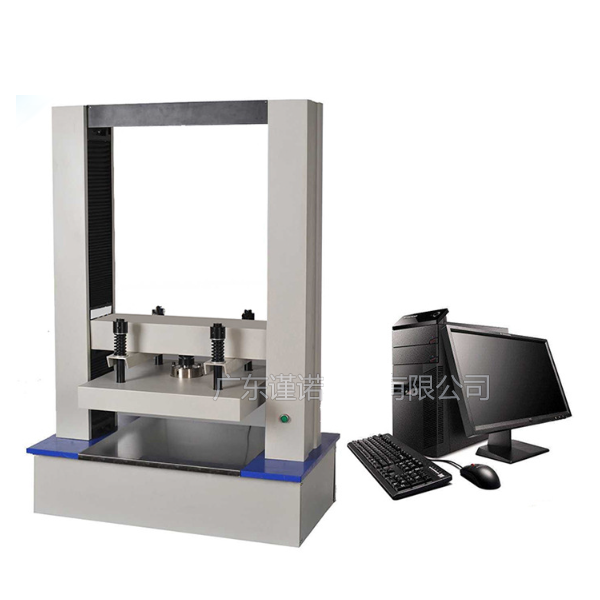

Jinuosh L-ZG002 纸管压缩试验机 (5/10/20/50kN)

Maximum test load: 5KN /10KN/20kN/50kN Optional;

Size of outer case: 600x600; 800x800; 1000x1000; 1200x1200; 1500x1500mm

Accuracy level: 0.5

Effective force measurement range: according to sensor specifications (plus or minus 10%)

Test force accuracy: ±0.5% of the indicated value;

Range of readings: keep three digits after the decimal point;

The euro. Test speed adjustment range: 0.001-500mm/min (stepless speed regulation);

Speed accuracy: ±0.5%;

Parallelism of upper and lower pressing plate: < 0.5mm;

Displacement measurement accuracy: ±0.5% of the indicated value;

Deformation measurement accuracy: ±0.5% of the indicated value;

Deformation measurement range: 0.2-100FS;

Deformation resolution: 1/500000 of the maximum deformation (full resolution unchanged);

Safety device: electronic limit protection;

Overload protection: automatic protection over 10% of the maximum load;

Data acquisition frequency: 120time/ SEC;

Servo motor: Selection according to the maximum load (400-2000W)

Power supply: AC 220V/5A;

Main engine weight: about 350kg
