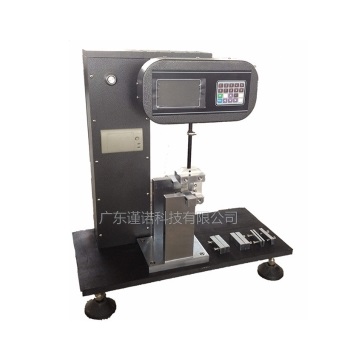

Jinuosh L-JZL002 Simple Supported Beam Impact Test Machine (2~5J, 2.9m/s)

Impact speed: 2.9m/s;

Pendulum energy: 2J, 4J, 5J (JZL-5D)

Distance from pendulum center to sample center: 221mm, 380mm

Jaw support spacing: 40mm, 60mm, 70mm, 95mm

Pendulum angle: 150°

Supporting blade fillet radius: R=1m

Impact angle of blade: 30°

Impact radius of blade: R=2mm
