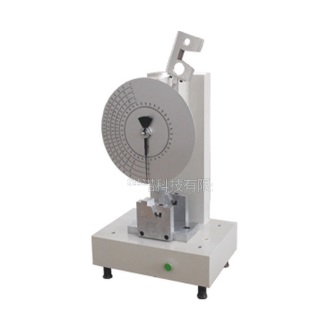

Jinuosh L-JZ01 Pendulum Impact Testing Machine (0.5~5J, 2.9m/s)

Pendulum energy: 0.5J, 1J, 2J, 4J, 5J

Pendulum force distance: 1J Pendulum PL=0.516Nm, 2J pendulum PL = 1.031Nm, 4J pendulum PL = 2.062Nm, 5J pendulum PL = 2.578Nm

Minimum scale division value: 1/100

Impact speed: 2.9 m/s

Distance from the center of the pendulum shaft to the center of the sample: 221mm

Jaw corner radius: 1mm

Included angle of impact blade: 30°

Impact radius of blade: 2mm

Power supply voltage: 220V
