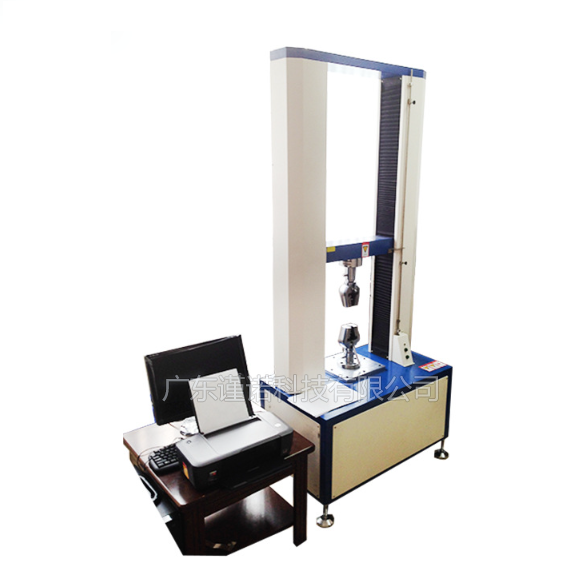

Jinuosh L-DZSC010 计算机伺服双柱拉伸试验机 (5, 10 tons, 800mm)

Capacity: 5 tons /10 tons

Force measurement accuracy: ± 1% of the indicated value

Display mode: LCD display in Chinese, film touch key

Unit switch: Kg, lb, N

Data sampling frequency: 200times/ SEC

Resolution of testing machine: the maximum load is 1/± 25,000 yards, the inside and outside are not classified, and the whole resolution is unchanged

Load sensors: Basic configuration: Pull and pressure sensors (maximum load)

Effective test width: 400mm

Effective stretch space: 800mm

Motor: Imported servo motor

Test speed range: 50-300mm/min stepless speed regulation and 5-gear constant speed (special test speed can be customized according to customer requirements)

Displacement measurement accuracy: within ± 0.5% of the indicated value

Breakpoint ratio setting: 0 ~ 99%, users can set the appropriate break down time according to different materials

Test bench safety device: up and down travel limit device

Overload protection: when the maximum load exceeds 10%, the machine will be protected automatically

Fixture configuration: One set of stretching fixtures

Host size: 1100×700×2000mm

Main engine weight: about 200 Kg

Power supply: 220V/380V 50Hz

Basic configuration

   One host machine

   One set of computers

   Standard wedge-shaped jig with one set of upper and lower

Optional configuration: Double sensor configuration; Large deformation configuration
