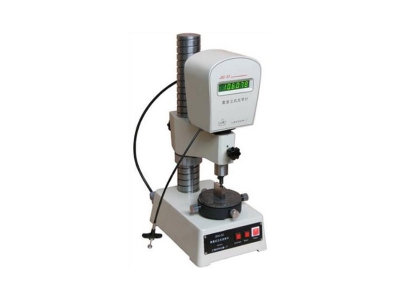

Jinuosh JDG-S2 Digital Display Vertical Optical Meter (200 mm)

Maximum length of the tested part: 200 mm

Direct measurement range: 10mm

Minimum display value: 0.1 µm

Measuring force: (2±0.2) N

Indication variability: 0.1 µm

Maximum inaccuracy: ±0.25 µm

Maximum measurement error: ±(0.5+L/100)µm, L is the measured length, in mm

Instrument volume: 300x170x410 mm

Instrument weight: 18 kg

Standard accessories:

Adjustable ribbed garden platform

Adjustable garden platform

Fixed square table with ribs

Plane measuring cap ①2

Plane measuring cap ①8

Small spherical measuring cap

Blade shape measuring cap

Detail

Datasheet
