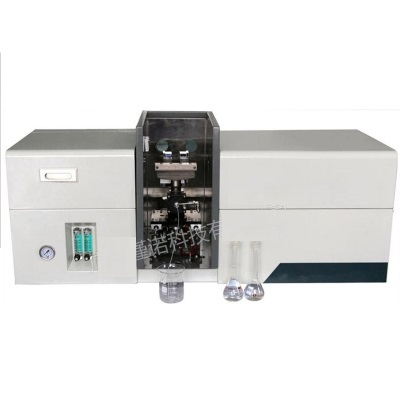

Jinuosh G-Z1000 Atomic Absorption Spectrometer (185~910nm)

Optical system:

    Wavelength range: Automatic adjustment from 185nm to 910nm

    The spectral bandwidth: 0.1, 0.2, 0.4, 1.0, 2.0nm

    Wavelength accuracy: ±0.10nm

    Wavelength repeatability: 0.05nm

    Baseline drift: Static 0.002a /30min dynamic 0.006a /30min

    The detector: Photomultiplier tube with wide spectral range

Light source system:

    Lamp holder: 3 lamp holder

    Lamp power supply mode: 400Hz square pulse

    Modulation range: 2 -- 10mA average current

Atomization system:

    Flame analysis method

    Detection limit (Cu): 0.003 mu g/ml

    The burner: 100mm All titanium burner

    Precision: RSD≤0.5%

    Detection limit: (Cd)≤4pg

    Hydride generator atomic absorption method

Instrument parameters:

    The power supply: AC 220V/50HZ

    Power: 150VA

    Instrument net weight: 55kg

    Instruments and gross weight: 80kg

    Instrument volume: 1110mm (horizontal) × 400mm (depth) × 500mm (height)

    The packing volume: 1350mm (horizontal) × 600mm (depth) × 850mm (height)

    Operating environment temperature: 10~35℃

    Working environment humidity: ≤80%
