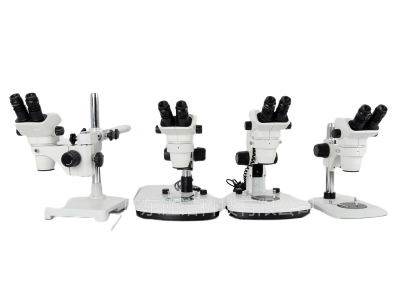

Jinuosh G-LX745 金相显微镜 (0.67-4.5X)

Observe the head:

       Binocular observation head, 45° tilt, pupil distance adjustment range 52mm-76mrn, with built-in interlocking mechanism, fixed eyepiece tube, with fixed setting and fixed doubling mechanism and ratio limit function design

        Three-eye observation head, 45° tilt, pupil distance adjustment range 52mm-76mrn, with built-in interlocking mechanism, fixed eyepiece tube, with fixed setting and fixed doubling mechanism and ratio limit function design

The eyepiece:

        High eye-point large field eyepiece PL10X/22mrn, adjustable visual Angle

        High eye-point large field eyepiece PL15X/16mrn, adjustable visual Angle

        High eye-point large field eyepiece PL20X/12.5, adjustable visual acuity

Objective: Continuous variable objective lens 0.67-4.5x, working distance 110mm

The auxiliary: 0.5X/177mm, 0. 7X/116mm, 1. 5X/47mm

Rack: One - piece vertical arm with mirror frame

          Split column type, can be matched with any mirror frame Flat base

The base: Flat base/Lighted base

Photographic equipment: 0.35X / 0.5X / 0.65X / 1X camera connector, C-type interface
