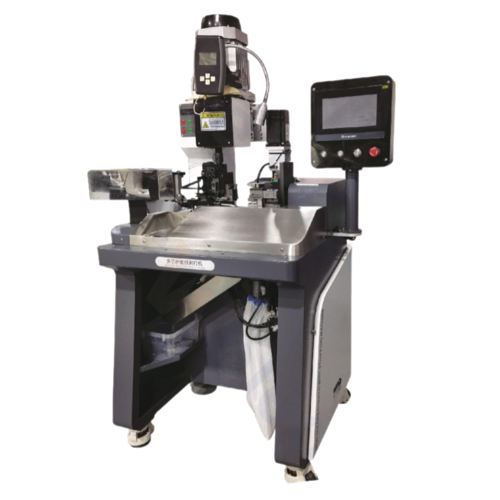

JCW JCW-2TP Multiconductor Cable Stripping and Crimping Machine (13.5 mm, 25 mm, 2 tons)

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections: 0.6-2.5 mm

Crimp force: 2 tons

Stroke: 30 mm

Product rate: 700-1000 pcs/hr

Sheath stripping length:

    2-4 cores: minimum 13.5 mm

    5-15 cores: minimum 25 mm

Inner cores numbers: 2-15 cores [Over 25 cores is customizable]

CFM: Optional

Rated power: 1500 W

Power supply: AC 110V-220V±10%, 50/60 Hz

Air supply: 0.4-0.6 MPa (clean and dry air)

Dimensions: L 850 x W 550 x H 1350 mm

Weight: 150 KG
