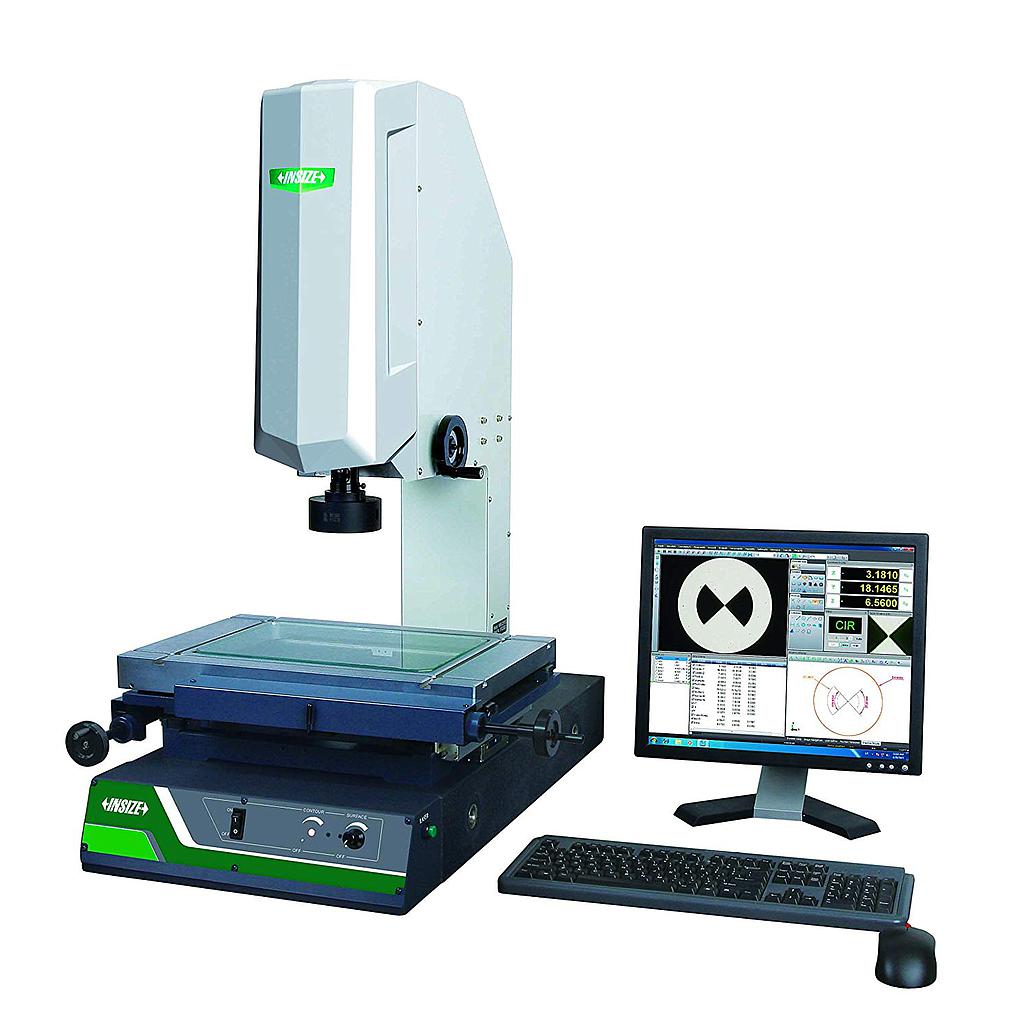

Insize ISD-V300英仕影像仪

Measuring Range (X x Y x Z):300x200x200mm
Stage Size: 500x330mm
Stage Glass Size: 350x250mm
Resolution of X/Y/Z Axis:0.5µ
Accuracy of X/Y/Z Axis: <=(2.5+L/100)µ (L is the measuring length in mm)
Repeatability of X/T Axis: 2µ
Objective:0.7X ~ 4.5X (zoom)
Workign Distance: 92mm
Magnification: 33X ~ 195X (on 19" monitor)
Camera: 1/3" colour CCD, 1.5M pixel
Illumination: Surface and contour with adjustable LED
Max workpiece height: 160mm
Max workpiece weight: 20kg
Operation    system: Windows 7
Drive Method: Manual
Power Supply: 110/220V, 50/60Hz
Dimension (L x W x H) : 760x600x900mm
Standard Delivery
Main unit : 1pc
Video card with dongle : 1pc
Sotware disc: 1pc
Calibration glass chart: 1pc
Laser positioner: 1pc
Clay : 1pc
Foot switch: 1pc
Anti-dust cover: 1pc
Optional accessories:
0.5X auxiliary objective: Code: ISD-V-OB05X
                     Working distance: 175mm
                     Magnification: 16.5 ~ 97.5X
2X auxiliary objective: Code: ISD-V-OB2X
                     Working distance: 36mm
                     Magnification: 66 ~ 390X
Probe:code ISD-V-PROBE
     :Include F2mm and F3mm styli,F25mm calibration ball
Lens with coaxial light: Code ISD-V-LENS (must be mounted infactor)
Vision measuring system with computer:Code ISD-V150A,ISD-V250A,ISD-V300A,
