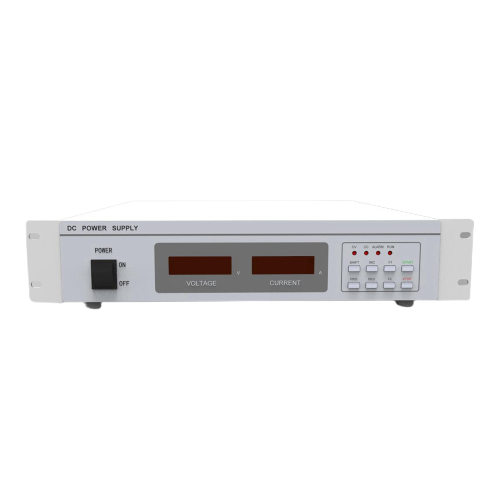

IdealTek MTP-0150-0020S 直流电源 (3KW, 150.0V, 20.0A)

  • 制造商:IdealTek
    Model: MTP-0150-0020S
    来源: China
    保障: 12 Month
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Input

Connection mode: Single - Phase, Two - Wire  + GND

Voltage: 220V±10%

Frequency: 50Hz/60Hz±5Hz

Output

Rated power: 3KW

Output voltage adjusting range: 0V ~ 150.0V

Output current adjusting range: 0A ~ 20.0A

Ripple (Vr.m.s.): ≤0.5% F.S

Response time: ≤10ms (measured @ 10%-90% resistive loading)

Efficiency: ≥88% (measured @ 80%-100% resistive loading)

Setting and display

Control mode: RS485 communication interface, In line with MODBUS-RTU standard.

Display mode: LED digital display

Protection and Monitoring functions: OVP, OCP. OTP, Output short-circuit protection, Automatic voltage compensation protection

Noise: ≤55dB

Protection degree: IP20

Cooling method: Forced air cooling

Insulation resistance: ≥20MΩ

Grounding inductance resistance: ≤100mΩ

Working conditions: 0°C~45°C, 10%~90% (non-condensing)

Size: 500*88*500 (19’’ 2U)

Details

Datasheet
