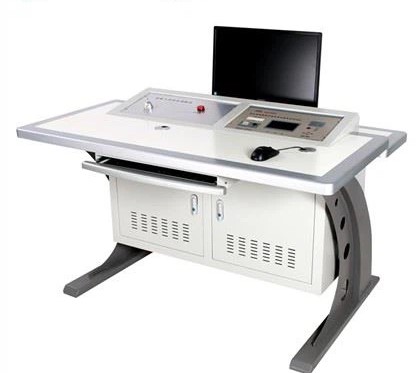

Huazheng HZAQ-KS Glove Tester Control Desk (100KV)

Rated output voltage:100kV(Insulation boots, insulated gloves, insulated rods, insulation pad test)

Rated capacity:10kVA

Output voltage range:100.0 kV（250V）

Voltage measurement error:＜±（0.5 %U+0.02%Umax）,Where U is the indication value and Umax is the upper limit value of the range.

Input current process:50.0A

Current measurement error:<±（0.5%I+0.02%Imax）, Where I is the indication value and Imax is the upper limit value of the range

Divider:

Voltage divider ratio:100/0.1（kV）

Variable-ratio error of voltage divider:1.5%

Insulating gloves test bench:

Test position: 8

Leakage current path:25.0mA

Leakage current measurement error:±(1%I+2 words)

Leakage current resolution:0.1 mA

Insulation Rod Test bench:

Test voltage:100kV

Test stations: 8

Insulation rod support height:1.2 M

Range of regulation:300 ~ 1030（mm）

Insulation pad test bench:

Rated voltage:50kV

Test bed area:1000*1000( mm )

Electrode area:800*800（mm）
