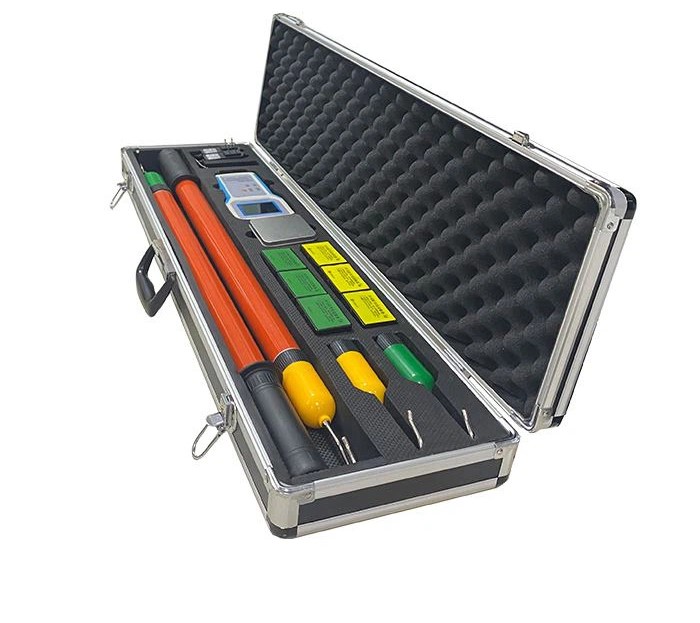

Huazheng HZ-8600E Central cabinet wireless unclear phase meter
制造商: Huazheng Model: HZ-8600E - 报价要求
- 联系
1、Phase difference accuracy:Error≤5°。
2、Frequency accuracy:±0.1HZ
3、Able to measure the voltage across the range of 5V ~ 220kV。
4、The maximum transmission line-of-sight distance between the receiving host and the transmitter is about 100 meters,The maximum transmission line-of-sight
distance from the collector is about 60 meters。
5、Human voice prompts measurement results and operation steps。
6 、 The 3.2-inch color screen simultaneously displays the phase difference,
frequency, vector diagram and in-phase and out-of-phase results of each line,Display the battery level of itself and the collector。
7、Automatic shutdown without operation for 1 hour。
8、Collector, transmitter and receiving host all have built-in rechargeable lithiumbatteries,Configure 5V charger。
9、Host built-in 18650 lithium battery,The battery capacity is 2500mAH。Collector
and transmitter built-in 10440 lithium battery,The battery capacity is 450mAH。
10、Leakage current <10uA during high voltage measurement。
11、Collector and transmitter working power consumption <0.1W,Receiving host
working power consumption <0.3W。
12、Working environment:-35℃--- +45℃ Humidity≤95%RH。13、Total Weight:About 8KG。
14、Instrument package size:Length 89cm*Width 26cm*Height11cm。
