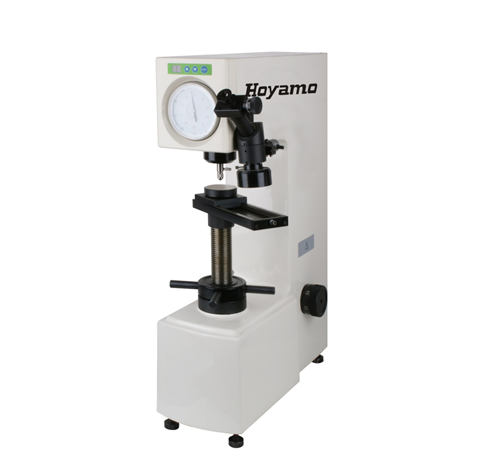

Hoyamo SHR187.5 Electronic Universal Hardness Tester

Rockwell Scales: HRA, HRB, HRC

Rockwell Testing Force: 60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N)

Brinell Scales: HBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5

Brinell Testing Force: 31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N)

Vickers Scales: HV 30、HV100

Vickers Testing Force : 30Kgf(294.2N)、100Kgf(980.7N)

Rockwell Hardness Indication: Analogue Display

Rockwell Resolution: 0.5HR

Loading Control: Electronic

Magnification of Microscope: Brinell:37.5x; Vickers:75x

Dwell Time: Adjustable 2~60s

Max. Height Of Specimen: Rockwell:170mm; Brinell, Vickers:140mm

Instrument Throat: 165mm

Dimension(LxWxH): 520 x215 x700mm

Packing Dimension: 650 x370 x960mm

Power supply: AC 220V/50Hz;AC110V/60Hz

Gross/Net Weight: 110Kg/90Kg

Execution Standard: ISO 6508,ASTM E18,JIS Z2245,GB/T230

Standard Delivery:

  • Instrument

  • Hardness Block(2033)HRC

  • Hardness Block(5770)HRC

  • Hardness Block(85100)HRB

  • Hardness Block HV30

  • Hardness Block HBW2.5/187.5

  • Slide Testboard

  • Set of Weights

  • Microscope

  • 15X Electronic Measuring Eyepiece

  • 2.5X Electronic Measuring Eyepiece

  • 5X Vickers Objective

  • Warranty Card / Qualified Certificate

  • Ø1.588mm Ball Intender

  • Vickers Intender

  • Φ2.5mm Brinell Intender

  • Φ5mm Brinell Intender

  • Cone Diamond Intender

  • Ø150mm Flat Anvil

  • Ø60mm Flat Anvil

  • Ø40mm Vshape Anvil

  • Power Cord

  • Bubble Level Meter

  • Toolbox

  • Dust Cover

  • Operation Manual / Packing List

Optional Accessories:

  • 1/8” Ball Intender

  • Ø1/8” Steel Ball

  • 1/4” Ball Intender

  • Ø 1/4” Steel Ball

  • 1/2” Ball Intender

  • Ø 1/2” Steel Ball
