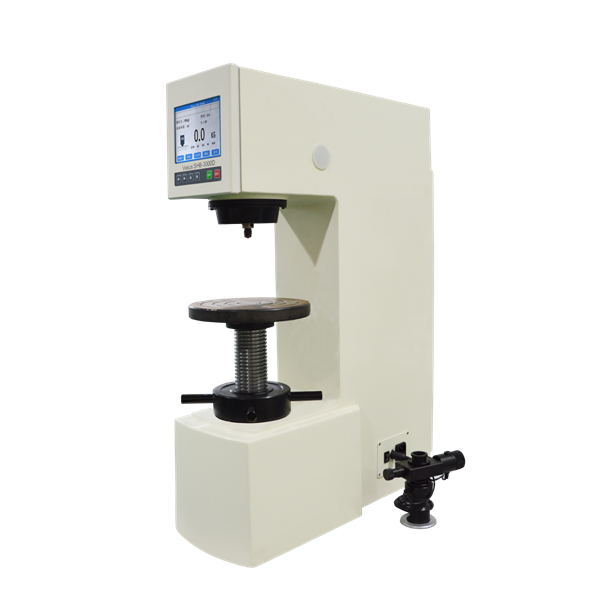

Hoyamo SHB-3000D Color Touch Screen Digital Brinell Hardness Tester (8~650 HBW)

Loading Force:

N: 612.9, 980.7, 1226, 1839, 2452, 4903, 7355, 9807, 14710, 29420

kgf: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000

Data Transfer: Bluetooth;RS232 is optional

Measuring Range: (8~650) HBW

Hardness Display: LCD Display

Hardness Conversion: HRC、HV、HBS、HBW、HK、HRA、HRD、HR15N、HR30N、 HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB

Magnification of Eyepiece: 20x Mechanic Microscope

Max.height of Specimen: 225mm

Instrument Throat: 135mm

Power supply: AC220V/50Hz;110V/60Hz

Conversion Standard: ASTM、DIN

Languages: Chinese, English, German, Portuguese, Turkish,  Czech, Korean

Dimension: 545 x235 x755mm

Gross/Net Weight: 160kg/130kg

Executive Standard GB/T4340、JIS Z2245、ASTM—E92、ISO6507

Accuracy of Brinell Hardness Testing:

Hardness Range:

HBW≤ 125: Max. Tolerance:≤± 3.5%; Repetition: ≤ 3.5%

125<HBW≤225: Max. Tolerance: ≤± 2.5%; Repetition≤ 3.0%

HBW> 225: Max. Tolerance: ≤± 2.0%: Repetition≤ 2.5%

Standard Delivery:

  • Instrument Main Body

  • 20x Mechanic Microscope

  • Hardness Block HBW/3000/10

  • Hardness Block HBW/750/05

  • Ø10mm Ball Indenter

  • Ø5mm Ball Indenter

  • Ø2.5mm Ball Indenter

  • Ø 200mm Flat Anvil

  • Ø 60mm Flat Anvil

  • Ø 40mm V-shape Anvil

  • Power Cable

  • Accessories Box

  • Level Screw

  • Anti-dust Cover

  • Instrument Manual/ Qualified Certificate
