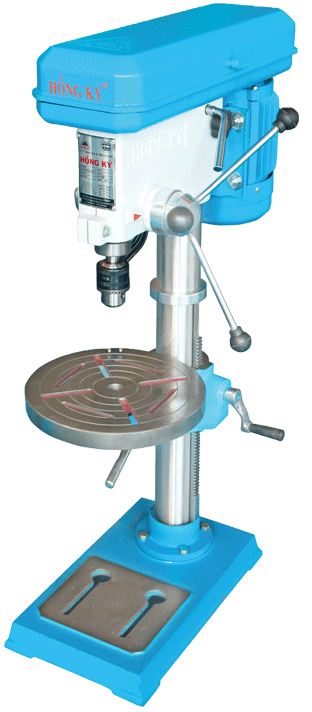

Hong Ky KT14 钻床

Drill route 80 mm
Distance from bit to drilling plate 620 mm
Distance from bit to cyclinder 182.5mm
Drill bit diameter 3-16mm
Diameter of cylinder 75
Cone hole to fit the drill drive 0
Speed stage 450-700-1100-1530
Motor 1/2 HP- 1 Phase-4P
Machine size 700X350X1200
Machine weight 90kg

Option: Can choose motor 3 phase

Details
  • All the machine parts are processed under fully automatic technology ( CNC ) of Japan
  • The accuracy between splines ( grooves ) is 0.05 mm ( 5/100)
  • All the machine parts are precisely grinded 0.005 mm ( 5/1000)
  • The set of axis is made of S45C steel that helps to increase the longevity
