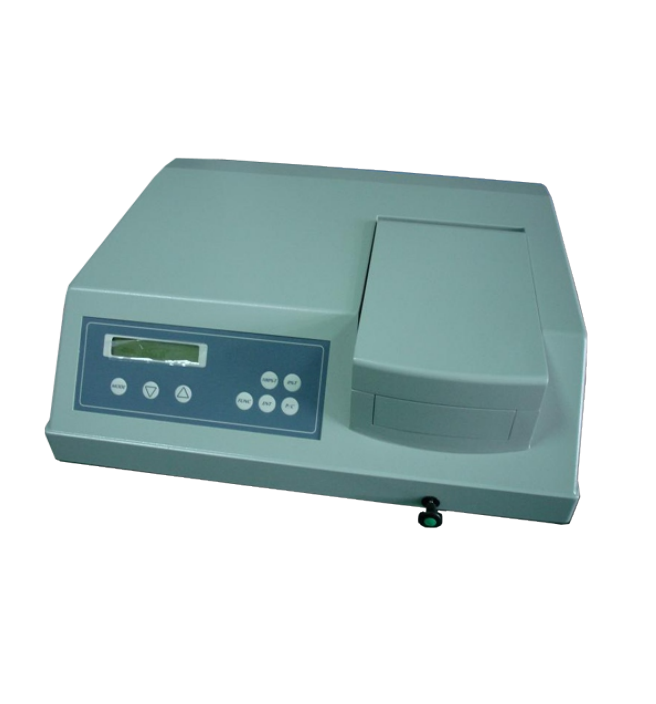

HINOTEK SP-2102UVPC 可见分光光度计 (190-1100nm)

Optical system(nm): Littrow type optic system with 1200 grooves/mm diffraction grating monochromator.

Measurement Path length: 100mm

Spectral slitwidth(nm): 2nm

Wavelength range(nm): 190-1100

Wavelength accuracy(nm): ±0.5nm (System Auto Calibration)

Wavelength Repeatability: 0.2nm

Stray light: < 0.1%T (at 220nm and 340nm)

Photometric mode: T, A, and C measurement

Photometric Range: 0-125.0%T, -0.097-3.000A

Photometric accuracy: ±0.3%T

Photometric Repeatability: 0.15%T

Stability: <0.001A/hr (at 500nm, after warming up for 1 hour)

Baseline flatness ±0.002A

Main Specification:

Display: 128*64 LCD Displayer

Light Source: 6V10W Halogen Lamp(2000 hours); Deuterium lamp(1000 hours)

Sample Compartment: 100mm Optical Path

Standard Cell Holder: 10mm

Standard Cell Configuration: 10mm Glass cell(4pcs)

Power Requirement: 110/220VAC; 50/60Hz, ±10%
