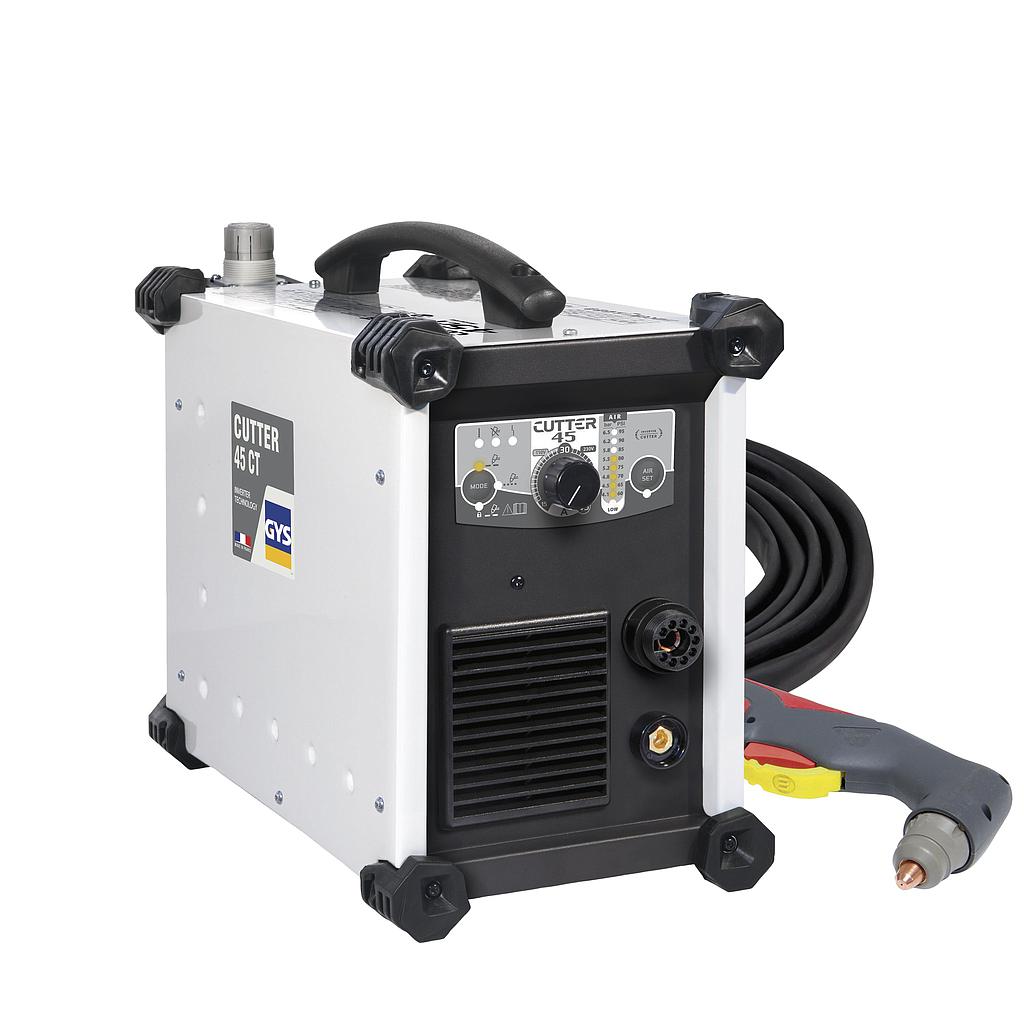

GYS CUTTER 45 CT 等离子切割机 (230V, 1ph, 15-45A, Torch 4m)

The professional-grade plasma cutters, the CUTTER 45 CT (single phase) and 70 CT (three phase) can cut metal up to a thickness of 35 mm. The CNC interface and the automatic, AT-70, industrial torch enable a completely mechanised operation

■ Easy-to-use control panel with a single potentiometer for adjusting the cutting intensity.

■ Three working modes: Cutting, trigger-lock cutting and cutting of perforated sheets.

■ Pre-wired for use on automatic cutting table (optional CNC-1

analogue kit).

■ No HF arc ignition to avoid electromagnetic interference.

■ Manual air pressure adjustment (4.1 < 6.5 bar) with front bar graph.

■ MT-70 premium torch designed to withstand impact and heat.

Specifications:

Power Supply: 230 V, 1 ph, 50/60 Hz

Current: 16 A

Cutting current range: 15-45 A

Duty cycle (environment temp. 40°C):

     Imax: 45 A @ 50%

     @ 60%: 41 A / 96.4 V

     @ 100%: 32 A / 92.8 V

No load voltage: 320 V

Recommended air flow rate: 115 L/min

Recommended air pressure: 5 > 7 bar

Protection class: IP 23

Recommended generator: > 10.5 kW

Dimensions (L x w x h): 48 x 37 x 23 cm

Weight: 15 kg

Standard IEC: 60974-1/10 A

Recommended manual torch: MT-70 or TPT 40

Included accessories:Torch TOPARC TPT 40, 4 m + Earth cable 2 m
