GYS EXAGON 400 CC/CV MMA/MIG-MAG/TIG 焊机 (400V, 3 ph, 400A, Wire feeder)

Powered by inverter technology, the EXAGON 400 combines MMA, MIG-MAG & TIG in a single machine, offering exceptional welding performance. Featuring advanced electronics and a reinforced structure, this station guarantees maximum productivity, even in the most hostile environments. Powerful, sturdy and versatile, the EXAGON 400 takes welding to the next level.

MULTIPROCESS WELDING:

Versatile thanks to its 6 modes:

• MMA : basic, rutile and cellulosic electrodes (up to Ø 6 mm)

• MMA Pulse : ideal for rising vertical welding

• MIG / MAG : solid wire (Ø 0.6/1.6 mm) and cored wire (Ø 2.4 mm)

     - Workshop water cooled wire feeder (optional EXAFEED 4L)

     - Construction site wire feeder (optional NOMADFEED)

• Arc gouging with carbon electrode (up to Ø 6.4 mm),

• TIG DC with TIG lift start

Specifications:

Welding current: 400 V, 3 ph, 50/60 Hz

Power supply: 32A

Welding current range (MMA): 20-400 A

Welding current range (TIG): 10-400 A

Welding current range (MIG/MAG): 15-400 A

Maximum welding current: 400 A

No-load voltage: 84 V (< 35 V VRD activated)

Duty cycle (environment temperature at 40°C):

- MMA

      400 A/36 V @ 60%

      350 A/34 V @ 100%

- TIG

      400 A/26 V @ 60%

      350 A/31.5 V @ 100%

- MIG/MAG

      400 A/34 V @ 60%

      350 A/24 V @ 100%

Dimensions (L x w x h): 58x52x30 cm

Weight: 32kg

Protection class: IP23

Standard: IEC 60974-1/10 A

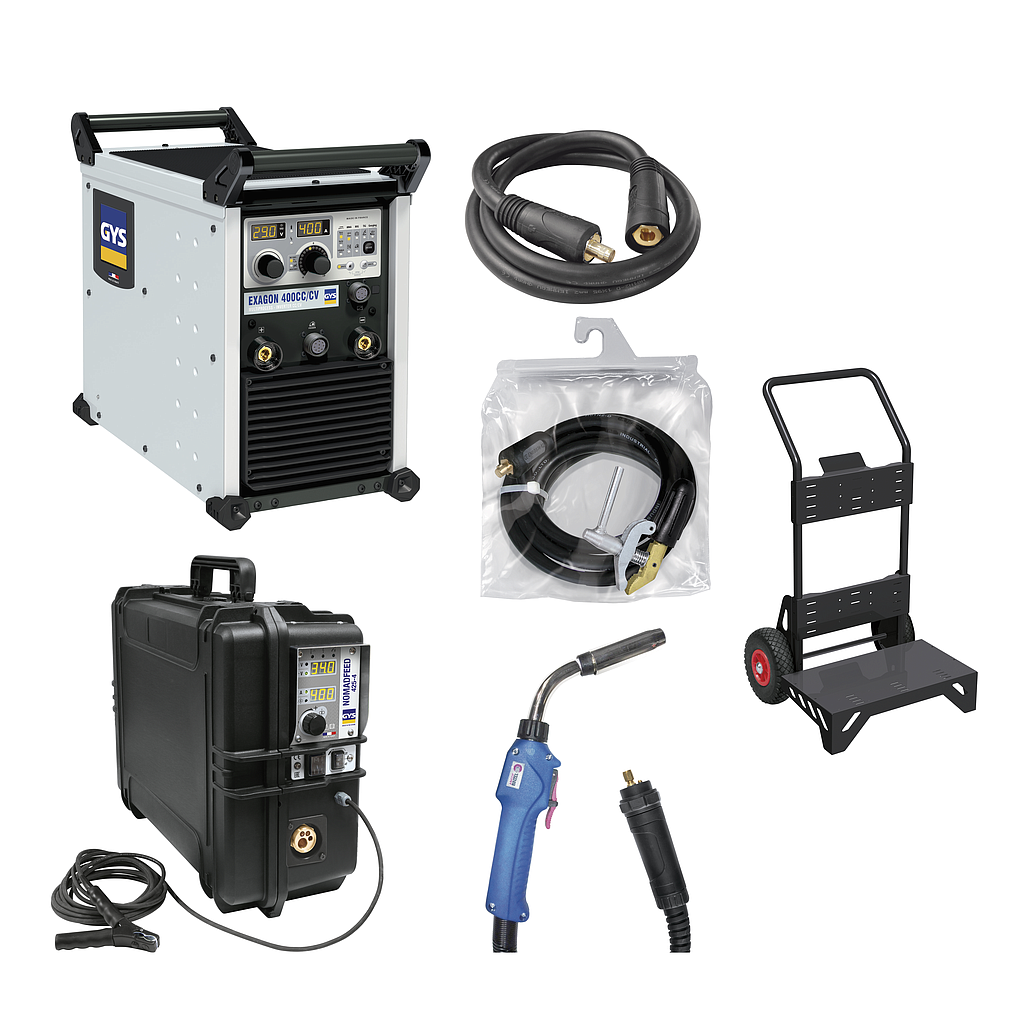

Included accessories:

Separate wire feeder NOMADFEED 425-4 CC/CV- 036291

NOMADFEED CABLE 5m - 95mm²- 032439

Roller TYPE C, Ø1/1.2

Earth cable 4m, 70 mm²- 043831

MIG/MAG torch grip 450 A, 4 m- 045392

Chariot Diable JOBSITE XL 039568
