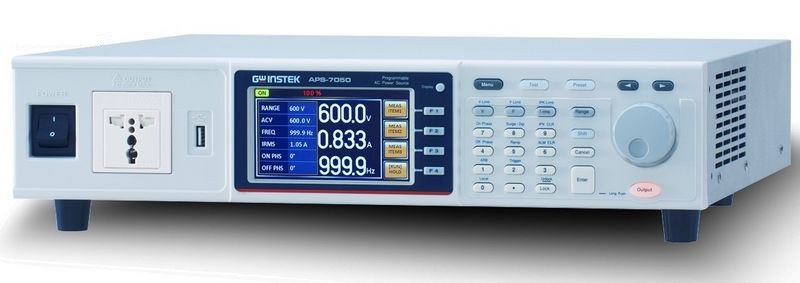

Gwinstek APS-7200 可编程交流电源(2kVA,500Hz)

Power Rating : 2000VA
Output Voltage 0 ~ 155Vrms, 0 ~ 310Vrms
Output Frequency 45.00 ~ 500.0 Hz
4.3-inch TFT-LCD
Output capacity : APS-7050(500VA、310Vrms、4.2Arms),
APS-7100 (1000VA、310Vrms、8.4Arms),
APS-7300 (3000VA、310Vrms、25.2Arms);
Output augmentation by options (0~600Vrms/45~999.9Hz)
Low Ripple & Noise
Measurement and test functions include VOLT、CURR、PWR、SVA、IPK、IPKH、FREQ、PF、CF
Support a small AC current measurement 2mA ~ 35A,
Min. resolution 0.01mA(APS- 7050& APS-7100)
Reverse Current Alarm Function
10 sets of Sequence function to Edit Output Waveforms/ 10 sets of simulate
mode to Rapidly Simulate Transient Power Supply/ 10 sets of Program mode
to Define Measurement Sequence/ 10 sets of Panel Memory Function
Automatic Execution of Sequence、Simulate、Program mode and Output Function when the Power is on
Standard Interfaces: USB Host, USB Device, LAN
Optional Interfaces: GPIB (APS-001);RS-232 / USB CDC(APS-002 for APS-7050& APS-7100 only), RS-232(APS-007 for APS-7200& APS-7300 only)
