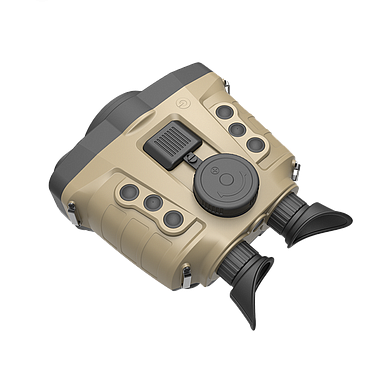

Guide IR521 多功能非制冷便携式热像仪

Detector type: 800x600@17μm, VOx
Spectral Range: 8μm~14μm
Focus lens: 70mm
FOV: 11.1°x8.3° (±5%)
-Visible camera
Focus: 3.63°x2.86°
Resolution: 1920x1080
-Working range:
Human (1.8m x 0.5m):
Detection range: >1.9km
Recognition range: >1km
Vehicle (2.3m x 2.3m):
Detection range: >3.3km
Recognition range: >2km
-Function
Position Accuracy: <10m (GPS, BDS optional)
Orientation Accuracy: ±0.5°
Ranging: eye-safe, 2.3m x 2.3m typical target measurement ranging not less
than 3km. maximum measuring range, for building 5km
Range Accuracy: <±5m
Wifi: transfer digital video (AVI format)
-Image
Polarity: White hot, black hot,...
Brightness/Contrast: Auto/Manual
Digital zoom: 2x
Video storage: 16GB SD card
View Finder: OLED 1280x1024
Power input: 12V adapter or 18650 battery
Continuous Working time by battery: >5h
Operating temperature: -40℃~60℃
IP67
Weight: 2.5kg(including battery)
Size: 240mm x 250mm x 115mm
