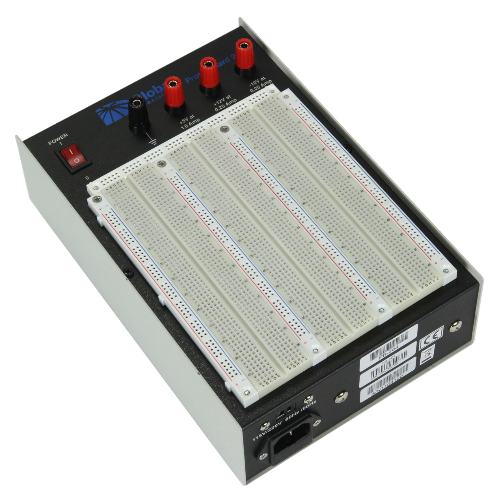

GLOBAL PB-204 支持电板

  • 制造商:GLOBAL
    Model: PB-204
    保障: 12 Month
    • 报价要求 Request a Quotation
  • Price (exclude VAT)7,219,050 VND
    Price (include VAT)7,940,955 VND
    • 加入购物车
    • 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Input power Source: AC Line: 110/120VAC @ 60Hz, or 210-220VAC @ 50Hz

Power Supplies:

 + Fixed DC: +5V +/-0.2VDC, 1.0A max, current limited

                      Load Regulation better than 0.8% +/- 0.02%/°C

                      Ripple, <4mVp-p @1A

 + Fixed DC: +12VDC, 0.5A max@ +12VDC +/-5%

                      Load Regulation better than 1% +/- 0.04%/°C,

                      Ripple less that 10mVp-p @ 0.5A

 + Fixed DC: -12VDC, 0.5A max@ +12VDC +/-5%

                       Load Regulation better than 1% +/- 0.04%/°C

                       Ripple less that 10mVp-p @ 0.5A

Binding Posts

 + (1) Black: Chassis Ground

 + (3) Red: Power Supply Outputs +5VDC, +12VDC & -12VDC

Breadboards: 2250 Tie points with (8) 100 pin and (2) 80 pin power rails and accommodate up to 24 (14 pin) IC's

Weight: 5lbs 5 oz (2.5kg)

Dimensions: 9.8 x 6.6 x3.3" (249 x 167 x 86.7mm)

Details

Datasheet


Manual
