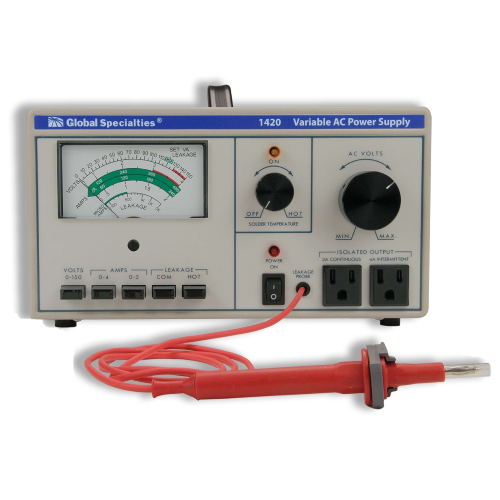

GLOBAL 1420 可变交流电源

Voltage Adjustment Range: 0-150 VAC with input at 120 VAC

Output Isolation: Leakage less than 0.1 mA (25°C, 50% RH)

Current Range: 0-3 A

Maximum Current (Isolated): 3 A continuous, 4 A intermittent (0-130 V)

Peak Current (Inrush): 30 A max. (inrush limited to one cycle at 30 A)

Voltage/Current Sensing: Sine wave average, calibrated in RMS

Meter Scale: 0-240 VAC; 0-480 VAC (voltage set at 120)

Leakage: 0-5000 μA (expanded in 100 - 500 μA portion, compressed to 5 mA full scale)

Metering: 4 ⅟2 multicolor scales. overrange protected

Typical Meter Accuracy: ±5% of full scale (volts and current)

                                       ±5% at 500 μA (leakage)

Soldering Iron Temp. Control: 70-99% of power line (100 W max.)

AC Input: 120 VAC ± 10%, 60 Hz

Dimension (HxWxD): 10.5"x5.7"x12" (267x145x305 mm)

Weight: 22 Ibs (10 kg)
