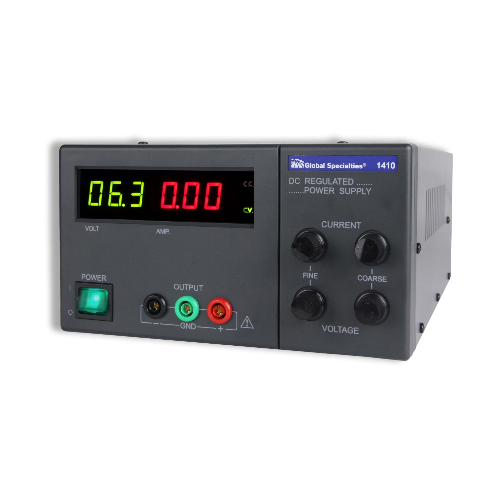

GLOBAL 1410 90W直流电源

Output Voltage: 0–30 V

Output Current: 3 A

CONSTANT VOLTAGE CHARACTERISTICS

 + Load regulation (0-100%): 0.02% +3 mV

 + Line regulation ( ± 6% ): 0.02% +3 mV

 + Ripple and noise r.m.s: 1 mV

CONSTANT CURRENT CHARACTERISTICS

 + Load regulation (0-100%): 0.02% +3 mA

 + Line regulation ( ± 6% ): 0.02% +3 mA

OUTPUT

 + Output terminals ( color ): ( + ) Red, ( – ) Black, (GND) Green

 + Ground proof voltage: ±180 V

Voltmeter: 3 digits

Ammeter; 3 digits

Serial connection ( independent control mode ): Can be connected in series (within limits of ground proof voltage)

Parallel operation ( master – slave mode ): Can be operated in “one-control” parallel configuration (only same model)

INPUT VOLTAGE

 + Voltage, Frequency: 120/240 VAC, 50/60 Hz; Switchable

 + Operating ambient temperature: 5–40°C; 10–80% R.H.

Dimensions ( W x H x D ): 205 x 115 x 270 ( mm )

Weight: Approximate 7.4 kg
