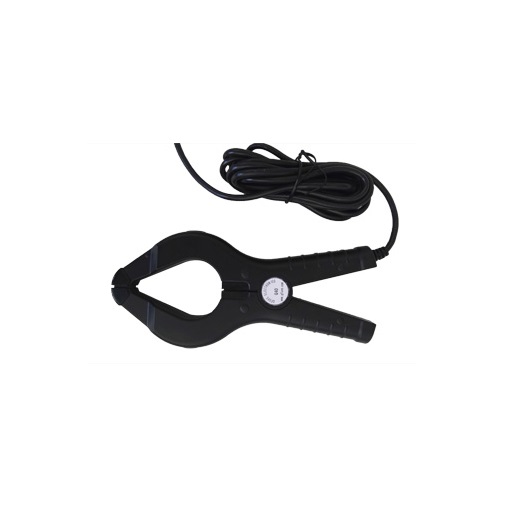

GFUVE Q40 Good Linearity Universal AC Clamp On Current CT Sensor (600A)

Electrical parameters

Ratio: 1000: 1 or 2000:1 (customized)

Accuracy class: 0.1%, 0.2%, 0.5%

Primary current: 0 - 500A AC

Secondary current: 0 - 1A AC or 0-5V AC (customized)

Max. Cont. Input current: 600A

Over voltage category: CAT III 600V

Output signal (AC current): 250mA,500mA,1A,5A AC at nominal input current

Output signal (AC voltage): 250mV, 500mV, 1V, 5V AC at nominal input current

Frequency range: 40Hz-2000Hz

Dielectric strength: 3KV 50Hz/60Hz at 1 minute

Temperature range: -20°C to +55°C

Output: 2.5 meter cable with D01 connector

Max. voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

Installation: Clamp type

Output mode: Lead output (2.5m)

Mechanical parameters

Dimensions (L x W x H)(mm): 82 x 290 x 25.3

Weight (g): 500

Holding wire diameter (mm): φ40

Max. jaw opening (mm): 40

Color: Black

Material: PC+ABS+Polycarbonate, UL94 V0
