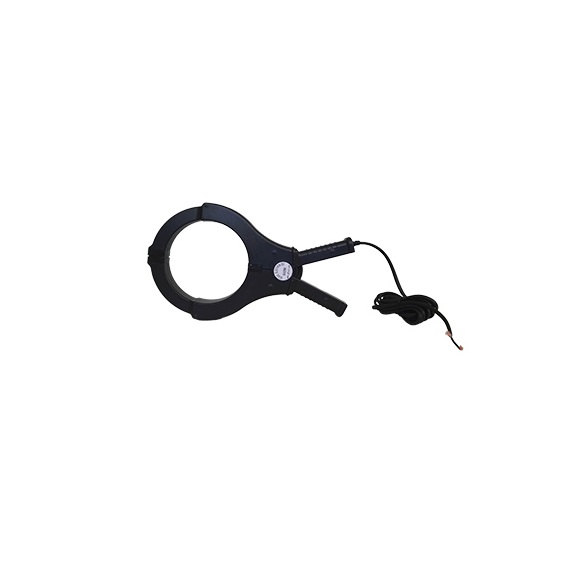

GFUVE Q125B Cable 125MM 3000A Split Core Square Bus Bar AC Current Probe (3600A)

ELECTRICAL PARAMETERS

Ratio: 1000: 1 or 2000:1 (customized)

Accuracy class: 0.2%, 0.5%, 1%

Primary current: 0 - 3000A AC

Secondary current: 0 - 5A AC (customized)

Max. Cont. Input current: 3600A

Over voltage category: CAT III 600V

Output signal (AC current): 500mA,1A,2A,5A AC at nominal input current

Output signal (AC voltage): 333mV, 500mV, 1V, 5V AC at nominal input current

Frequency range 40Hz-2000Hz

Dielectric strength: 3KV 50Hz/60Hz at 1 minute

Temperature range: -20°C to +55°C

Output: 2.5 meter cable with D01 connector

Max. voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

Installation: Clamp type

Output mode: Lead output (2.5m)

MECHANICAL PARAMETERS

Dimensions (L x W x H)(mm): 180 x 319 x 35

Weight (g): 1100

Holding wire diameter (mm): φ125

Max. jaw opening (mm): 125

Color: Black

Material: PC+ABS+Polycarbonate, UL94 V0
