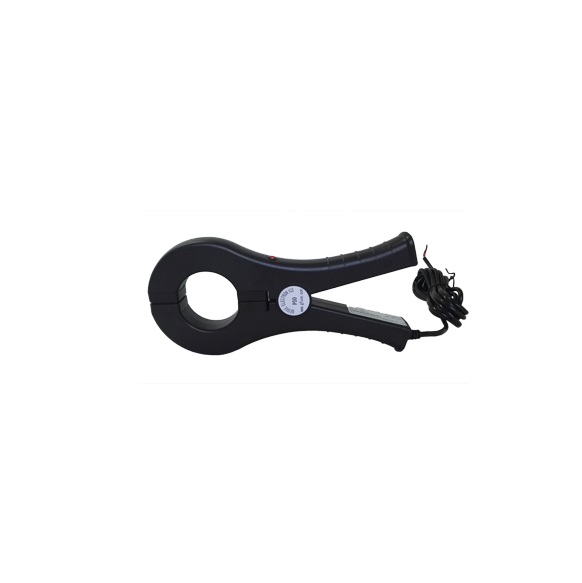

GFUVE P50 Selected AC Measurement Clamp On Current Probe (1200A)

ELECTRICAL PARAMETERS

Ratio: 1000: 1 or 2000:1 (customized)

Accuracy class: 0.1%, 0.2%, 0.5%

Primary current: 0 - 1000A AC

Secondary current: 1mV/A AC, 5mV/A or (customized)

Max. Cont. Input current: 1200A

Over voltage category: CAT III 600V

Output signal (AC current): 333mV, 500mV,1V,2V,5V AC at nominal input current

AC Accuracy(1000A Range)

        0-10A: ≤0.5%

        10-100: ≤0.2%

        10-1200A: ≤0.1%

AC Phase Shift(1000A Range)

        0-10A: ≤0.5°

        10-100: ≤0.2°

        10-1200A: ≤0.1°

Frequency range: 40Hz-2000Hz

Dielectric strength: 3KV 50Hz/60Hz at 1 minute

Temperature range: -20°C to +55°C

Output: 2.5 meter cable with D01 connector

Max. voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

Installation: Clamp type

Output mode: Lead output (2.5m)

MECHANICAL PARAMETERS

Dimensions (L x W x H)(mm): 102.9 x 219.6 x 28

Weight (g): 550

Holding wire diameter (mm): φ50

Max. jaw opening (mm): 50

Color: Gray or blue

Material: PC+ABS+Polycarbonate, UL94 V0
