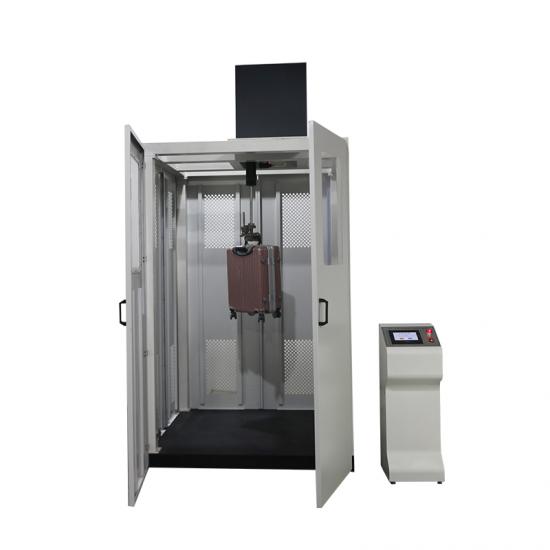

GESTER GT-LC02 Luggage Vibration Impact Tester (1.79kg/mm)

Control system: PLC and touch screen (using man-machine interface control system, easy to operate, power cut and save function)

Counting: 0-999 999 times, the equipment will automatically shutdown when it reaches the set number of times, setting the number of impact in the human-machine interface.

Driving Cylinder: 100 KG weight Cylinder, AINTAC Cylinder

Sample Clamp: lower suction cup, upper damping rubber block, impact rod, the total weight of common clamps are (8.1+0.2) kg.

Impact Stroke: The impact device can move up and down, and the one-way stroke is (150 ±5) mm. The stroke is set on the basis of the impact device with an additional load of 30 kg.

Impact Weight: The stroke is set on the basis of the additional load of the impact device of 30 kg.

Impact Spring: Spring constant (17.54±0.88) Nmm, spring section is rectangular (8.5 mm×4.2 mm) length (165±5) mm, outer diameter (44.5±0.5) mm, inner diameter (28.0 ±0.5) mm, effective number (17 soil 0.5) laps.

Damping Block: Both end of damping spring is equipped with a circular damping rubber block with an outer diameter of 100±5 mm, a height of 30±3 mm, and a diameter of a central hole of 22±2 mm. The main material is thermoplastic polyurethane, and the hardness is Shore A 85±3. The center hole of the lower damping block should ensure the impact rod passes freely and smoothly.

Backpack Clamp: The quality of backpack belt clamp is (1.35±0:05) kg.

Sample Fixing Materials: bovine split-layer section napped leather, thickness 1.5 mm~2.0 mm, width (100 ± 5) mm, softness 1.5 mm~2.5 mm (test aperture 25 mm)

Gas Source: 6KG/CM2

Power supply: 220v, 50/60HZ

Weight: 500 kg
