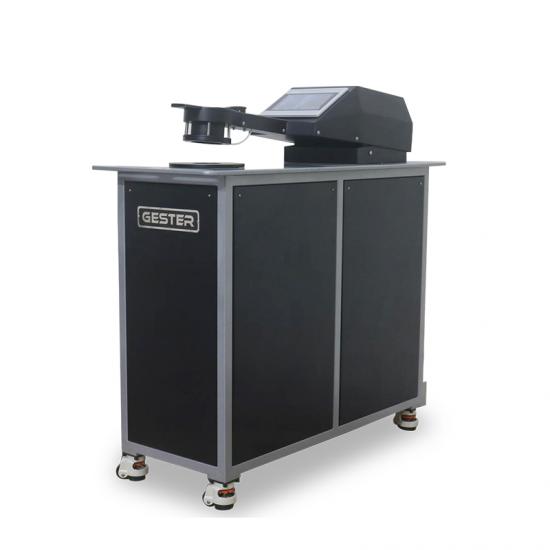

GESTER GT-C27A Automatic Air Permeability Tester Of Textile Fabrics

Operation display: PLC+Touch Screen

Test method: Automatically

Test time: 10～15s

Nozzle pressure difference: 4,000Pa

Specimen pressure difference: 1,000Pa

Data port: RS232C

Permeability range: 0.1～12000mm/s

Measuring error: ≤±2％

Measuring unit: mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min, m3/m2/min

Testing area:

5cm2, 20cm2, 50cm2, 100cm2 ,

Ф50mm (≈19.6cm2), Ф70mm(≈38.5cm2)

Fabric thickness: ≤12mm

Nozzle parameter:

Number: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9

Dia. mm: 0.8, 1.2, 2, 3, 4, 6, 8, 10, 12, 16

Power supply: AC 220V 50/60HZ, 2KW

Dimensions: 700 x 520 x 1100mm (L x W x H)

Weight: 93kg
