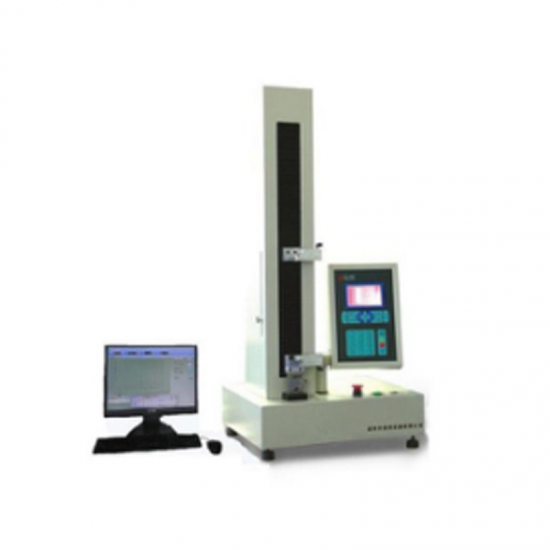

GESTER GT-B03 Plush Bundle Fiber Strength Tester (10-20000mm/phút,20N~300N)

Mode: Constant rate of elongation theory(CRE), Mode microcomputer control, English LCD display support interconnect communication

Speed Control Range: 10 – 20000mm/min

Speed Control Accuracy: <±2%

Acceleration Time: ≤10 ms

Return Speed: 1-2000mm/min

Sampling Frequency: ≥2000 times/second (can be set ≤10000times/second)

Testing range: 20N~300N

Test Accuracy: ≤±0.2%F.S

Force Value Resolution: 0.01N

Stroke Space: 600mm

Elongation Precision: ≤0.01 mm

Clamp Distance Can be Accurate to: 3-100mm

Breakdown Time Accuracy: ≤1 ms

Clamping Methods: Pneumatic

Human-machine Operation Interface: PC+ Touch Screen Control (bilateral control)

Power Supply: AC220V±10% 50Hz 1KW

Dimension: 580x480x1100mm
