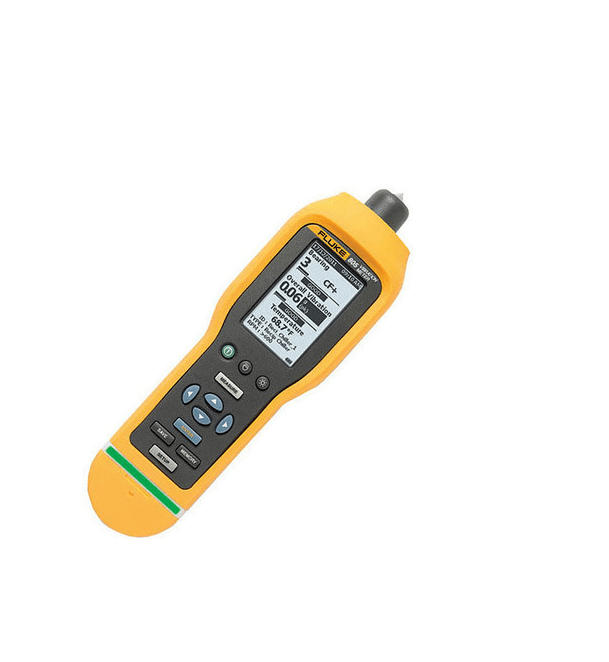

FLUKE 805 FC Fluke 805 FC 振动点检仪

Vibration Meter:
Low frequency range: 10 Hz to 1,000 Hz
High frequency range: 4,000 Hz to 20,000 Hz
Severity levels: Good, Satisfactory, Unsatisfactory, Unacceptable
Vibration limit: 50 g peak (100 g peak-peak)
Signal to noise ratio     80 dB
Sampling rate:
 Low frequency: 20,000 Hz
 High frequency: 80,000 Hz
Real time clock backup:    Coin battery
Sensor:
Sensitivity:100 mV g ± 10%
Measurement range:0.01 g to 50 g
Low frequency range (overall measurement): 10 Hz to 1,000 Hz
High frequency range: 4,000 Hz to 20,000 Hz
Resolution: 0.01 g
Accuracy: At 100 Hz ± 5% of measured value
Amplitude Units:
Acceleration: g, m/sec²
Velocity: in/sec, mm/sec
Displacement: mils, mm
Infrared Thermometer (Temperature Measurement)
Range: -20 °C to 200 °C
Accuracy: ±2 °C (4 °F)
Focal length: Fixed, at ~3.8 cm (1.5")

Memory: Up to 3,500 measurements
IP rating: IP54
Vibration limit: 500g peak
Drop test: 1 meter
Battery: AA (2)Lithium Iron Disulfide
Battery life: 250 measurements
Size: 24.1 cm x 7.1 cm x 5.8 cm
Weight: 0.40 kg
Included accessories: USB cable, Storage case, Belt holster, Quick reference guide, CD-ROM (includes MS Excel template and documentation), Two (2) AA batteries
